GIBRALTAR

STEEL frameset – $2,999
TITANIUM frameset
– $3,999

Ready to start?  Fill out an order form and we'll promptly be in touch.  All of our frames are made to order and require a $500 deposit to reserve your ship date. Please inquire for current ship dates.


OVERVIEW

We live for the open roads and the places they lead us.  Our most iconic frame is named after Santa Barbara's epic twisting road climb, Gibraltar.

The Gibraltar model features responsive geometry to create a road bike that accelerates over steep pitches, races across the flats, and barrels down descents.

Feel the spirit of the road, be one with the Gibraltar.






    Features:

    • Fully constructed from custom-ordered steel or titanium tubing provided by high-quality manufacturers
    • Stinner Select road caliper carbon road fork
    • Includes Front Derailleur Clamp, Rear Derailleur Hangar, Seat Clamp, and Chainstay Protector

    technical specifications

    • Maximum tire clearance of 28mm
    • Maximum chainring clearance for 53/39
    • Dropout spacing: 130mm QR Rear, 100mm QR Front
    • Standard Road Caliper Brakes
    • External shift and brake cable routing
    • Seat tube collar: 29.8mm (Steel), 31.8mm (Ti)
    • Front Derailleur Clamp: 28.6mm (Steel), 31.8mm (Ti)
    • Seat post diameter: 27.2mm
    • English-threaded 68mm bottom bracket shell
    • Carbon 1.5" tapered fork, 300mm steerer
    • Fork crown race diameter: 40mm
    • 44mm internal headtube diameter
    • Headset: ZS44/28.6 Upper, EC44/40 Lower


    Finish

    Here at Stinner Frameworks we are known for two things:

    Frames that ride amazing, and outstanding design-minded paint finishes.

    Over the years we have created hundreds upon hundreds of unique in-house designs, inspired colorways, and full custom show bikes.

    Every bike tells a story of the rider, the brand, and the process.

    The result of this amazing journey culminates in our current offerings.



        Included in your Steel frame-set cost is a Basic scheme:

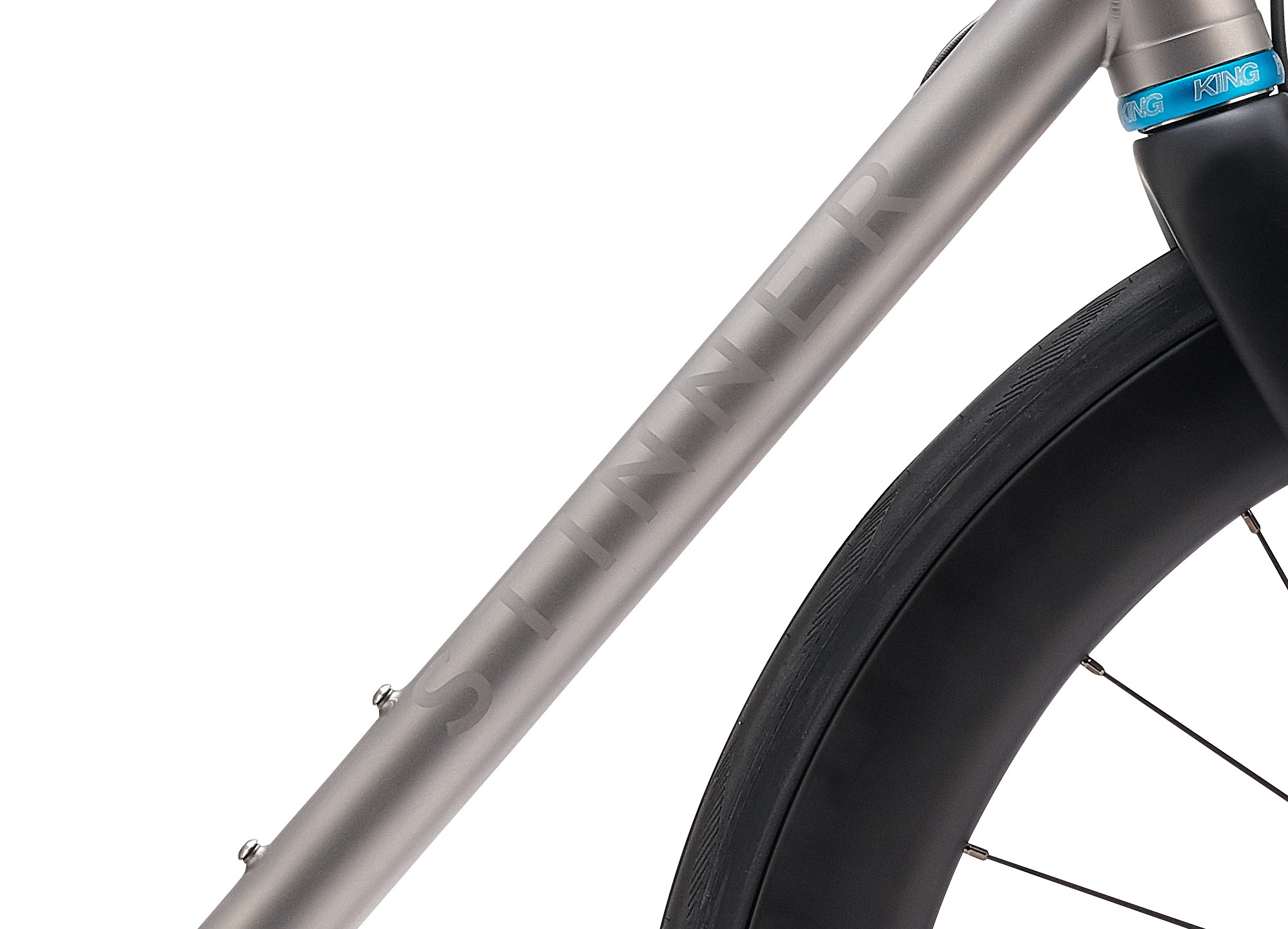

        Included in the Titanium frame-set cost is a beadblasted polished finish with etched decals.

        • If you would like to add paint please see our 'Simple Add-On's' section of the Vault page or select the Ti option of any Vault Scheme.
        • Fully painted Basic schemes can be applied to Titanium bikes for an additional cost.


        Want something more?

        • The Vault represents our favorite pre-made finishes with a design and brand focus. Priced affordably at different tiers these designs are what we feel represents Stinner as a whole. Hi-Gloss by default and a virtually smooth-to-touch transition between paint layers.

        build kit

        If you are interested in building a complete or partial bike, please see our popular options for Build Kit below.  Your Build Kit includes your choice of cockpit, bearings, group set, and wheelset.  We will create a complete build list of components based on your selections.


        Geometry

        Our standard geometry is offered at no additional cost.  For an additional $250, we will create a unique custom geometry draft based on your riding style, body measurements, and bike fit.  Please get in contact with us to learn more about custom geometry.

        Screen Shot 2018-05-09 at 12.21.22 PM.png

        Click geo chart to enlarge

        *All measurements are in millimeters - using 28mm tires for standover and trail measurments


        FRAME ADD-ONS

        The following is a list of all the custom features we can add to your frame.  The group set-specific features–Di2 and ETap Routing–will be added to your order automatically with your purchase of either group set.





        Stainless Steel Head Badge

        Di2 Routing

        ETap Routing

        Internal Rear Brake Line

        Frame Pump Peg

        Rear Fender Mounts

        Rear Rack Mounts

        S&S Couplers

        Integrated Seat Post

        STEEL

        $150

        $150

        $0

        $150

        $50

        $50

        $50

        $700

        N/A

        TITANIUM

        $200

        $300

        $0

        $300

        $75

        $75

        $75

        $1,000

        $800
