GIBRALTAR-D

STEEL frameset – $3,099

TITANIUM frameset – $4,099

Ready to start the order process?  Fill out an order form and we'll promptly be in touch.  All of our frames are made to order and require a $500 deposit to reserve your ship date. Please inquire for current ship dates.


OVERVIEW

Sometimes you just need more stopping power and control, be it during a rainy race, a muddy descent, or a quick off-road detour.  The Gibraltar-D answers that call.

Our Gibraltar-D road frame is designed with the intention of performing at the same level as our classic Gibraltar, but with flat-mount disc brakes.

Same modern geometry, same Stinner quality, improved stopping power.


Features:

  • Fully constructed from custom-ordered steel or titanium tubing provided by high-quality manufacturers
  • Stinner Select flat-mount disc carbon road fork
  • Includes Front Derailleur Clamp, Rear Derailleur Hangar, Seat Clamp, and Chainstay Protector


frame TECHNICAL SPECIFICATIONS:

  • Maximum tire clearance of 28mm
  • Maximum chainring clearance for standard 53/39
  • Dropout spacing: 142x12mm TA Rear, 100x12 TA Front
  • Flat-mount front and rear disc brakes
  • External shift and brake cable routing
  • Max rotor sizes: 160mm front, 140mm rear
  • Seat tube diameter: 29.8mm (Steel), 31.8mm (Ti)
  • Seat post diameter: 27.2mm
  • English-threaded 68mm bottom bracket shell
  • Carbon 1.5" tapered fork, 300mm steerer
  • Fork crown race diameter: 40mm
  • 44mm internal headtube diameter
  • Headset: ZS44/28.6 Upper, EC44/40 Lower

Finish

Here at Stinner Frameworks we are known for two things:

Frames that ride amazing, and outstanding design-minded paint finishes.

Over the years we have created hundreds upon hundreds of unique in-house designs, inspired colorways, and full custom show bikes.

Every bike tells a story of the rider, the brand, and the process.

The result of this amazing journey culminates in our current offerings.





Included in your Steel frame-set cost is a basic scheme:




    Included in the Titanium frame-set cost is a beadblasted polished finish with etched decals.

    • If you would like to add paint please see our 'Simple Add-On's' section of the Vault page or select the Ti option of any Vault Scheme.
    • Fully painted Basic schemes can be applied to Titanium bikes for an additional cost.


      Want something more?

      • The Vault represents our favorite pre-made finishes with a design and brand focus. Priced affordably at different tiers these designs are what we feel represents Stinner as a whole. All are Hi-Gloss by default.

      BUILD KIT

      If you are interested in building a complete or partial bike, please see our popular options for Build Kit below.  Your Build Kit includes your choice of cockpit, bearings, group set, and wheelset.  We will create a complete build list of components based on your selections.

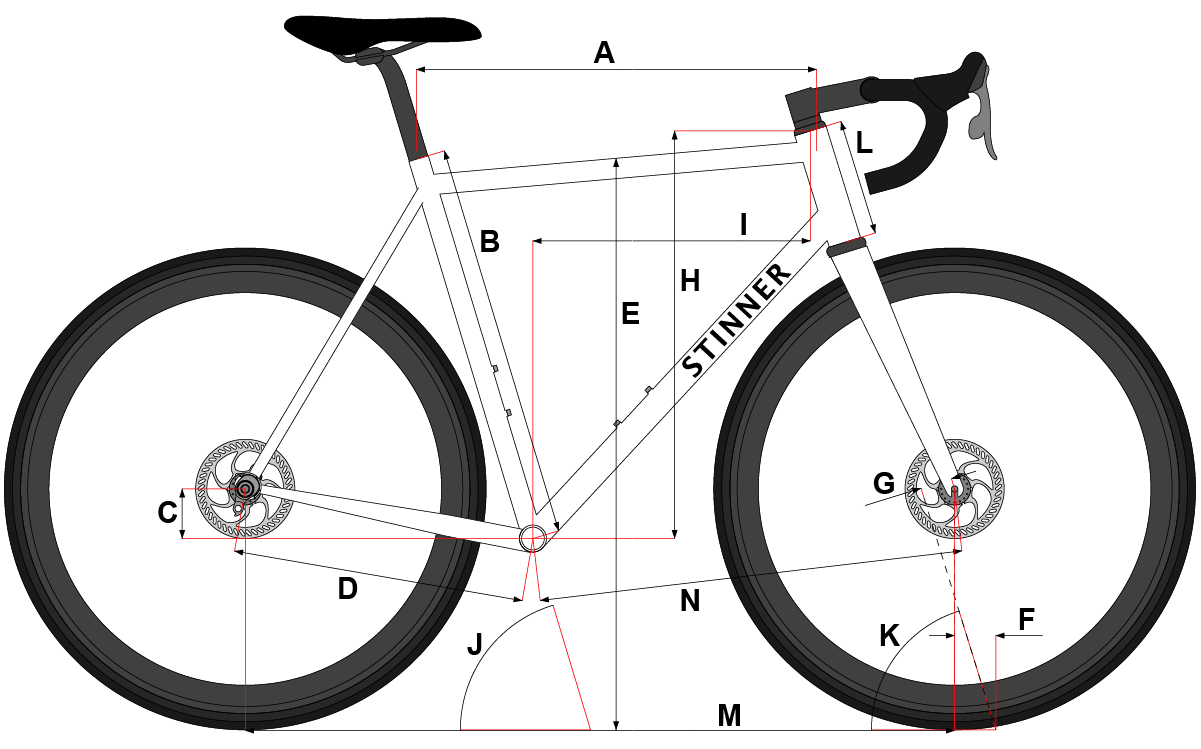

      Geometry

      Our standard geometry  is offered at no additional cost.  For an additional $250, we will create a unique custom geometry draft based on your riding style, body measurements, and bike fit.  Please get in contact with us to learn more about custom geometry.

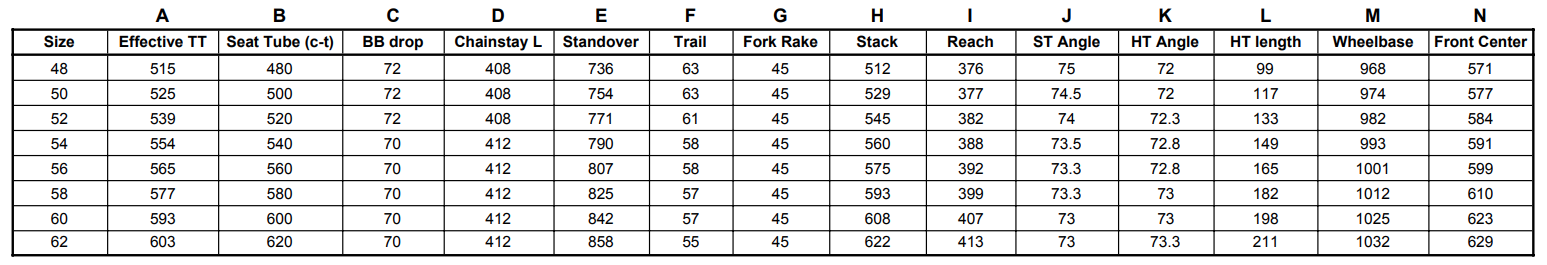

      Click geo chart to enlarge

      *All measurements are in mm - using 28mm tires for standover and trail measurements


      FRAME ADD-ONS

      The following is a list of all the custom features we can add to your frame.  The group set-specific features–Di2 and ETap Routing–will be added to your order automatically with your purchase of either group set.





      Stainless Steel Head Badge

      Di2 Routing

      ETap Routing

      Internal Rear Brake Line

      Frame Pump Peg

      Rear Fender Mounts

      Rear Rack Mounts

      S&S Couplers

      Integrated Seat Post

      STEEL

      $150

      $150

      $0

      $150

      $50

      $50

      $50

      $700

      N/A

      TITANIUM

      $200

      $300

      $0

      $300

      $75

      $75

      $75

      $1,000

      $800
