STEEL frameset – $3,099

TITANIUM frameset – $4,099

Ready to start the order process?  Fill out an order form and we'll promptly be in touch.  All of our frames are made to order and require a $500 deposit to reserve your ship date. Please inquire for current ship dates.


Before smooth asphalt roads swept up and between mountains, there were quiet gravel paths.

The Refugio is made to handle all roads–paved, unpaved, and everything in between–from the gravel road of the Carrizo Plain to the double track of the Sierra Nevada.

Choose your paths with confidence, let your frameset inspire your direction.



  • Fully constructed from custom-ordered steel or titanium tubing provided by high-quality manufacturers

  • Stinner Select flat-mount disc carbon gravel fork

  • Includes Front Derailleur Clamp, Rear Derailleur Hangar, Seat Clamp, and Chainstay Protector



  • Maximum tire clearance of 700c x 50mm

  • Maximum chainring clearance for 50/34 (2x) or 42T (1x)

  • Dropout spacing: 142x12mm TA Rear, 100x12mm TA Front

  • Flat-mount front and rear disc brakes

  • External shift and brake cable routing

  • Max rotor sizes: 160mm front, 160mm rear

  • Front derailleur clamp: 28.6mm (Steel), 31.8mm (Ti)

  • Seat post diameter: 27.2mm

  • English-threaded 68mm bottom bracket shell

  • Carbon 1.5" tapered fork, 300mm steerer

  • Fork crown race diameter: 33mm

  • 44mm internal headtube diameter

  • Headset: ZS44/28.6 Upper, EC44/33 Lower


Here at Stinner Frameworks we are known for two things:

Frames that ride amazing, and outstanding design-minded paint finishes.

Over the years we have created hundreds upon hundreds of unique in-house designs, inspired colorways, and full custom show bikes.

Every bike tells a story of the rider, the brand, and the process.

The result of this amazing journey culminates in our current offerings.


Included in your Steel frame-set cost is a Basic scheme:

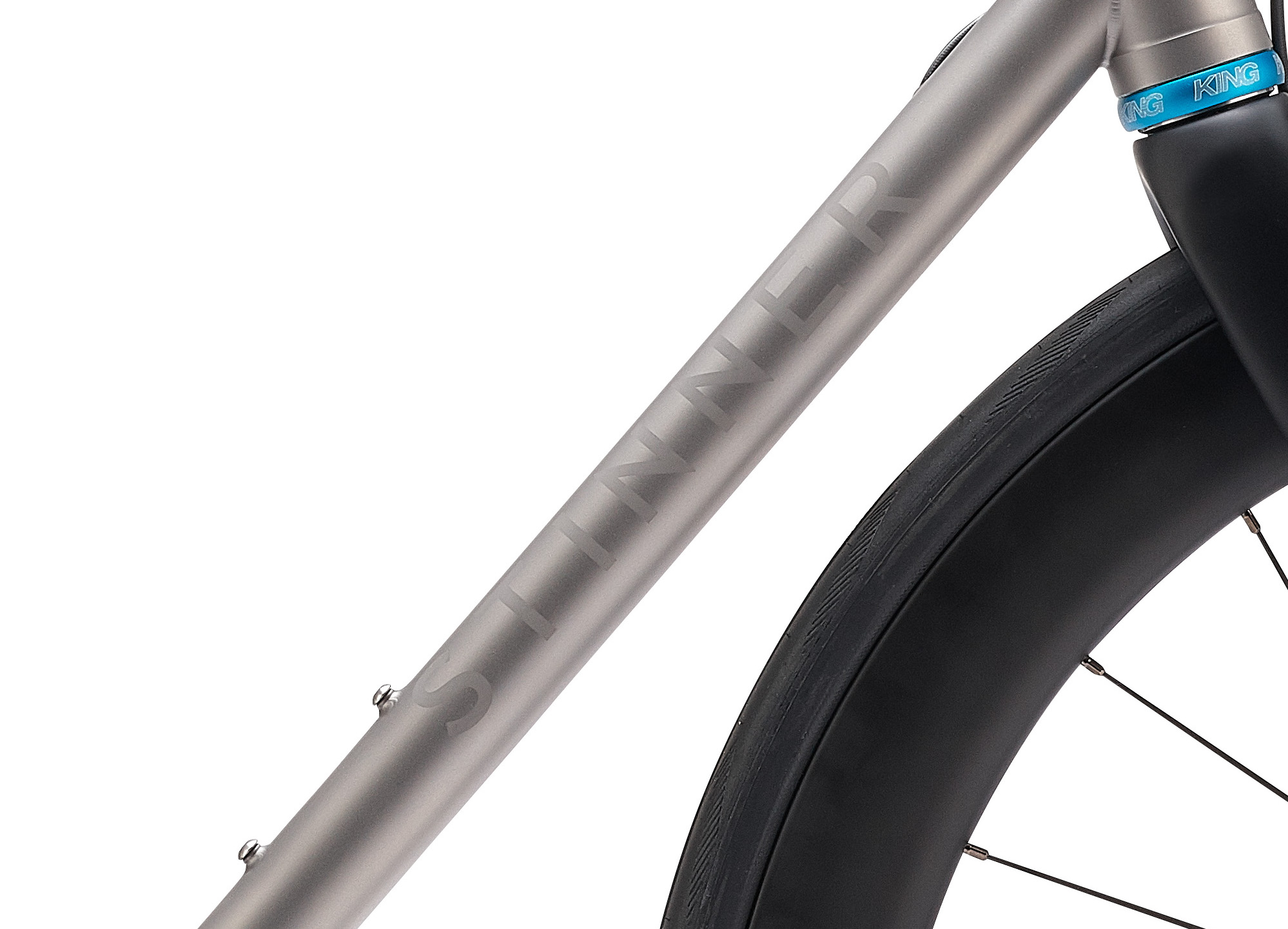

Included in the Titanium frame-set cost is a beadblasted polished finish with etched decals.

Angle_01 copy.jpg


  • If you would like to add paint please see our 'Simple Add-On's' section of the Vault page or select the Ti option of any Vault Scheme.

  • Fully painted Basic schemes can be applied to Titanium bikes for an additional cost.


Want something more?

  • The Vault represents our favorite pre-made finishes with a design and brand focus. Priced affordably at different tiers these designs are what we feel represents Stinner as a whole. Hi-Gloss by default and a virtually smooth-to-touch transition between paint layers.


If you are interested in building a complete or partial bike, please see our popular options for Build Kit below.  Your Build Kit includes your choice of cockpit, bearings, group set, and wheelset.  We will create a complete build list of components based on your selections.

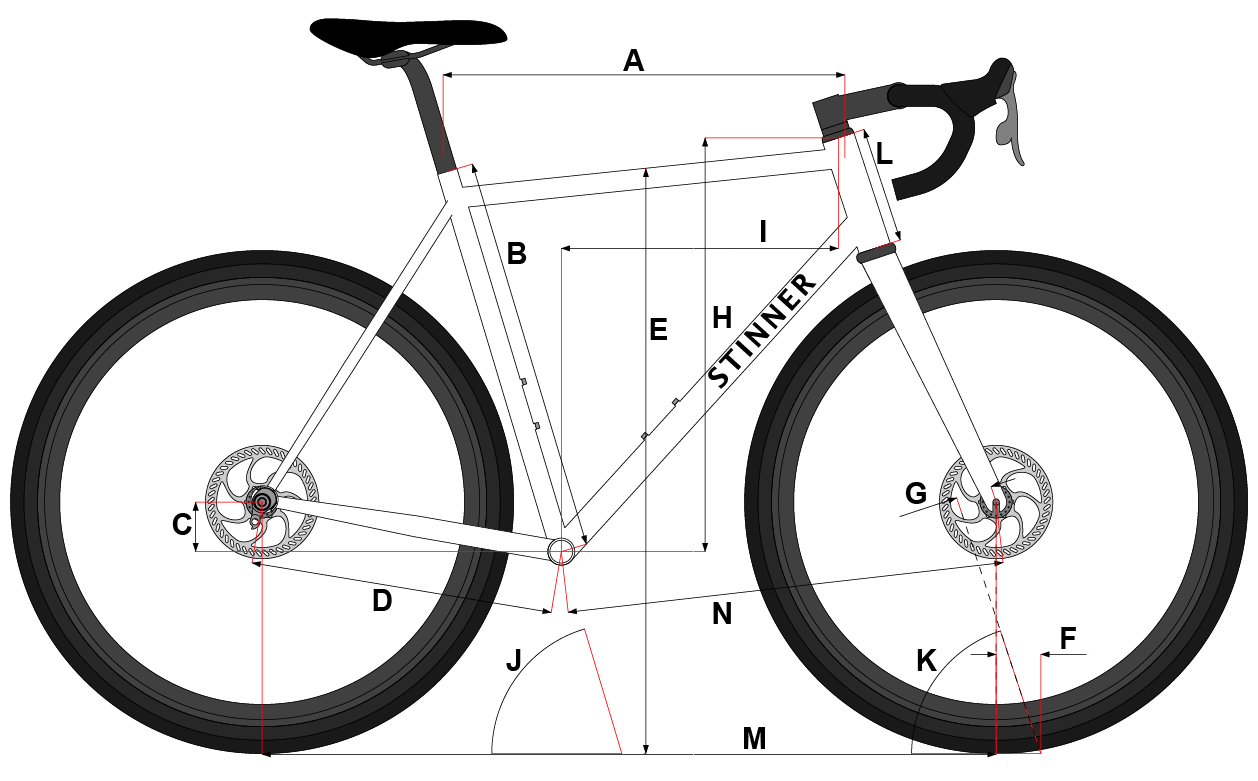

Our standard geometry  is offered at no additional cost.  For an additional $250, we will create a unique custom geometry draft based on your riding style, body measurements, and bike fit.  Please get in contact with us to learn more about custom geometry.


We have new geometry, please ask for your size and we can send you specs!

Thanks for your patience.

-Stinner Team


The following is a list of all the custom features we can add to your frame.  The group set-specific features–Di2 and ETap Routing–will be added to your order automatically with your purchase of either group set.



Stainless Steel Head Badge

Di2 Routing

ETap Routing

Internal Rear Brake Line

Frame Pump Peg

Rear Fender Mounts

Rear Rack Mounts

Third Bottle Mount

S&S Couplers

Integrated Seat Post
