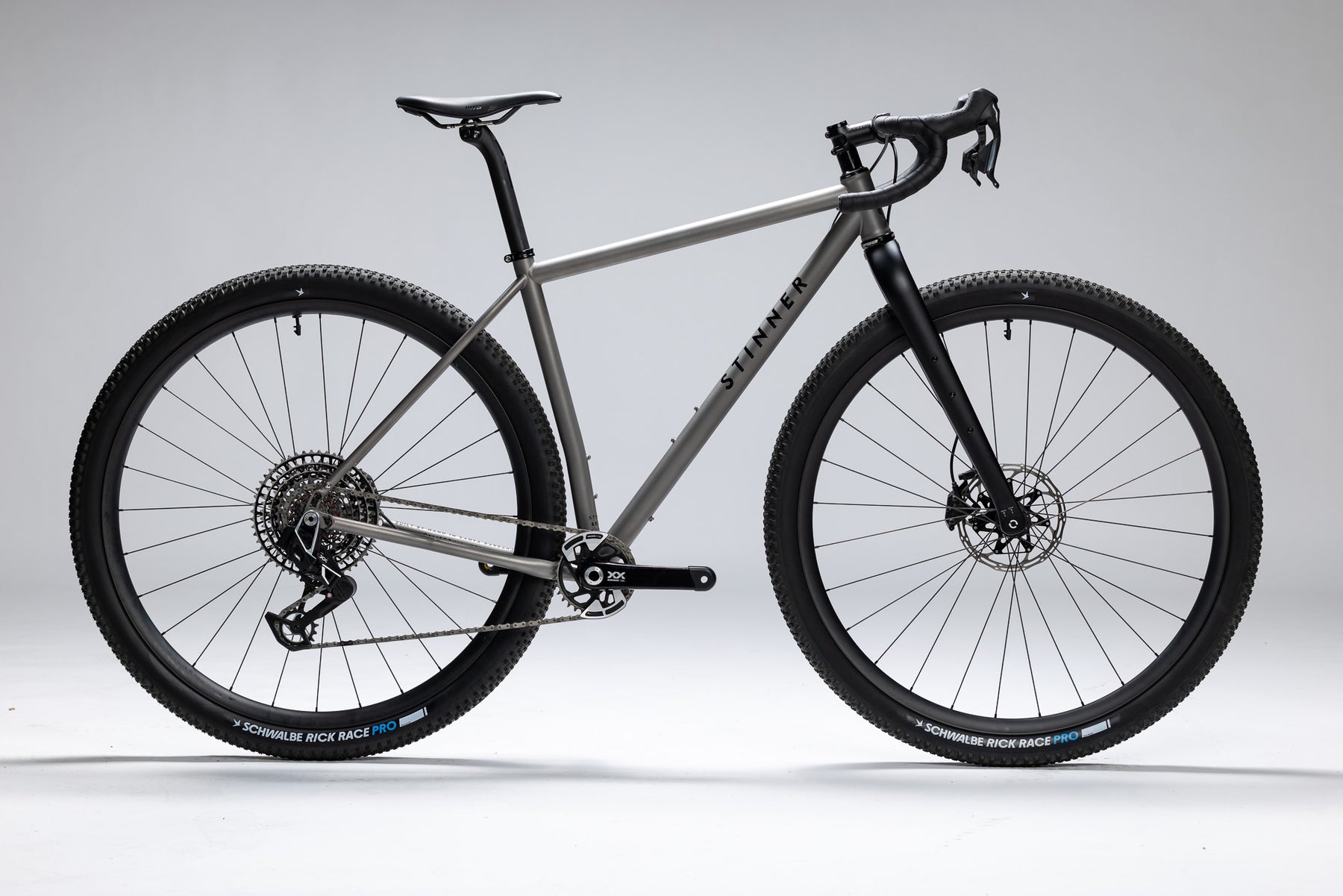

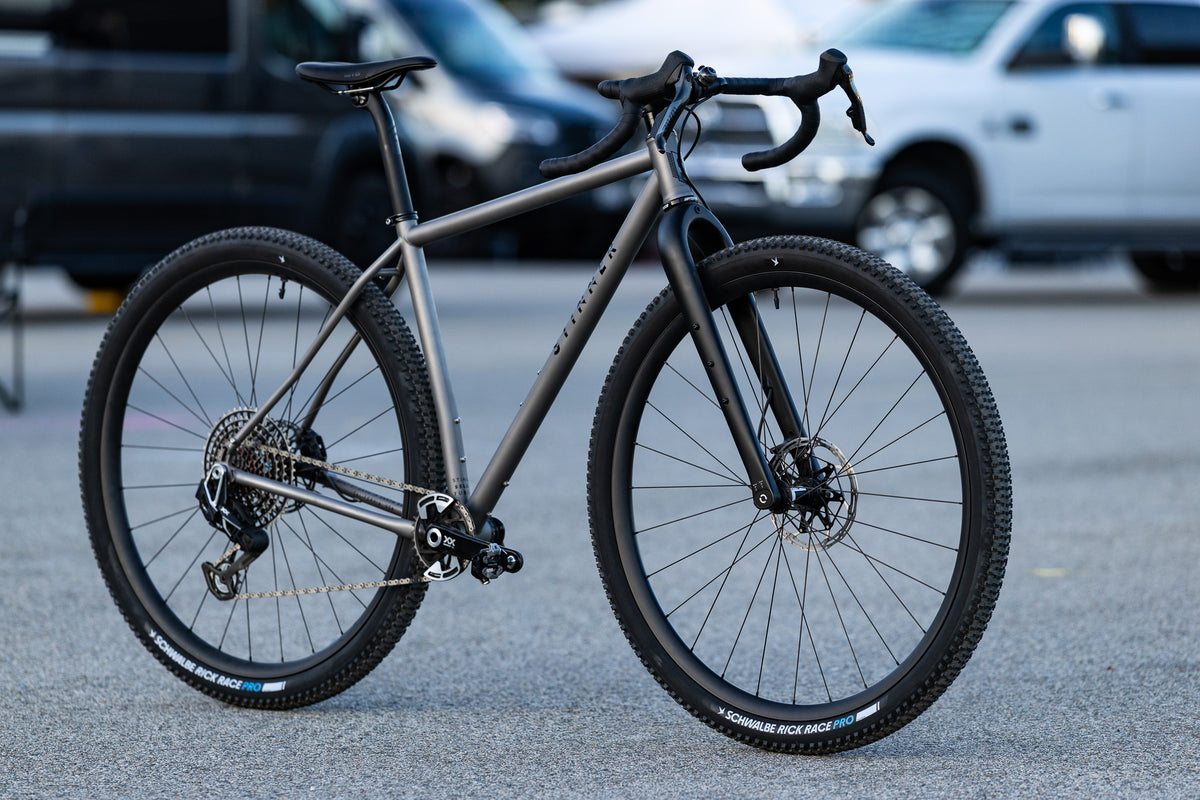

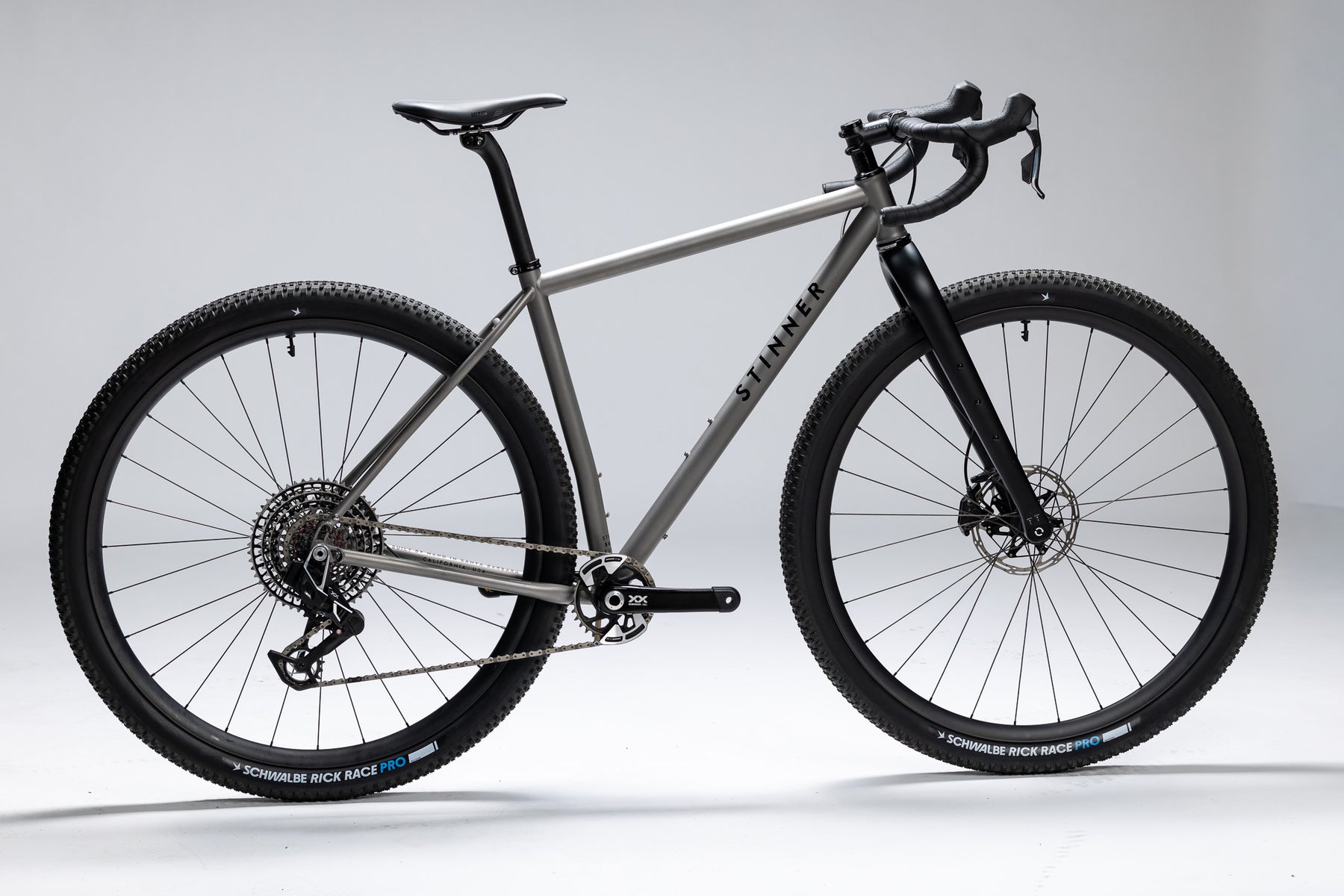

Refugio Podium 32"

Frameset Technical Specifications //

Please note: Based on component availability, specifications are subject to change without notice.

FRAME //

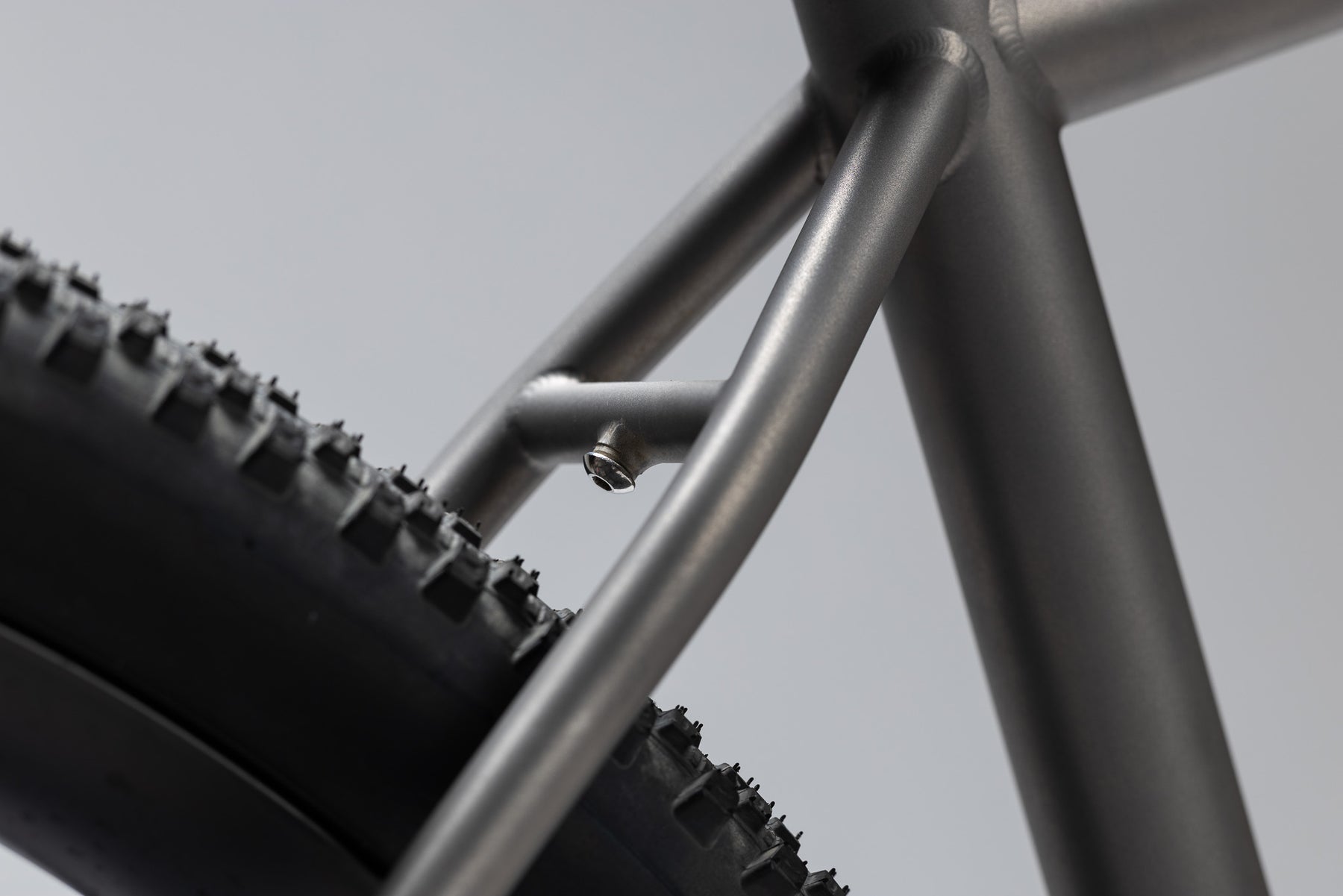

Material // Titanium - Straight Gauge Tubeset

Finish // Bead Blasted Raw Ti

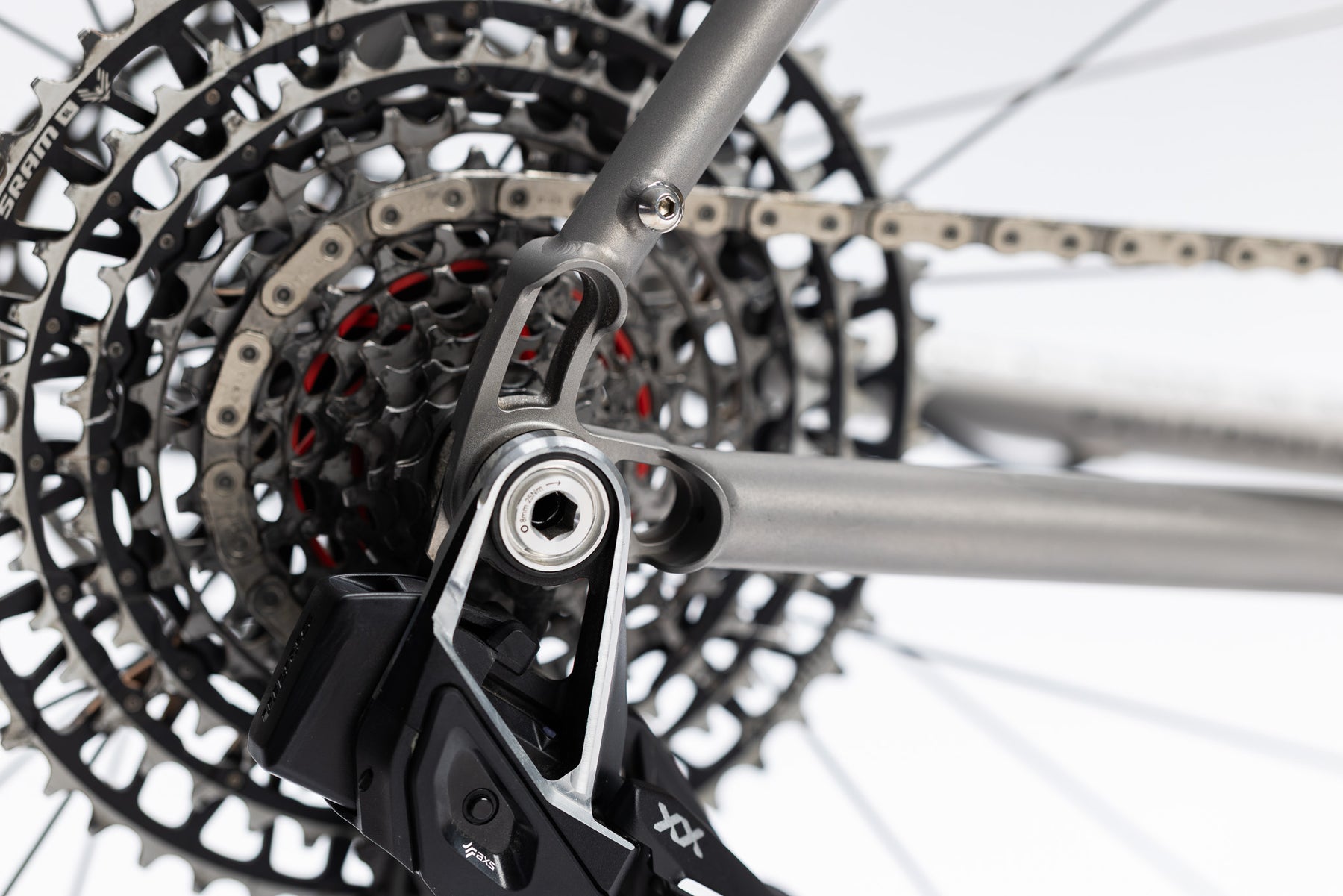

Dropouts // Stinner UDH 160mm Flat Mount CNC Ti Dropouts

Drivetrain Compatibility // Wireless Only 1x w/ 55mm CL - Transmission/Full Mount compatible

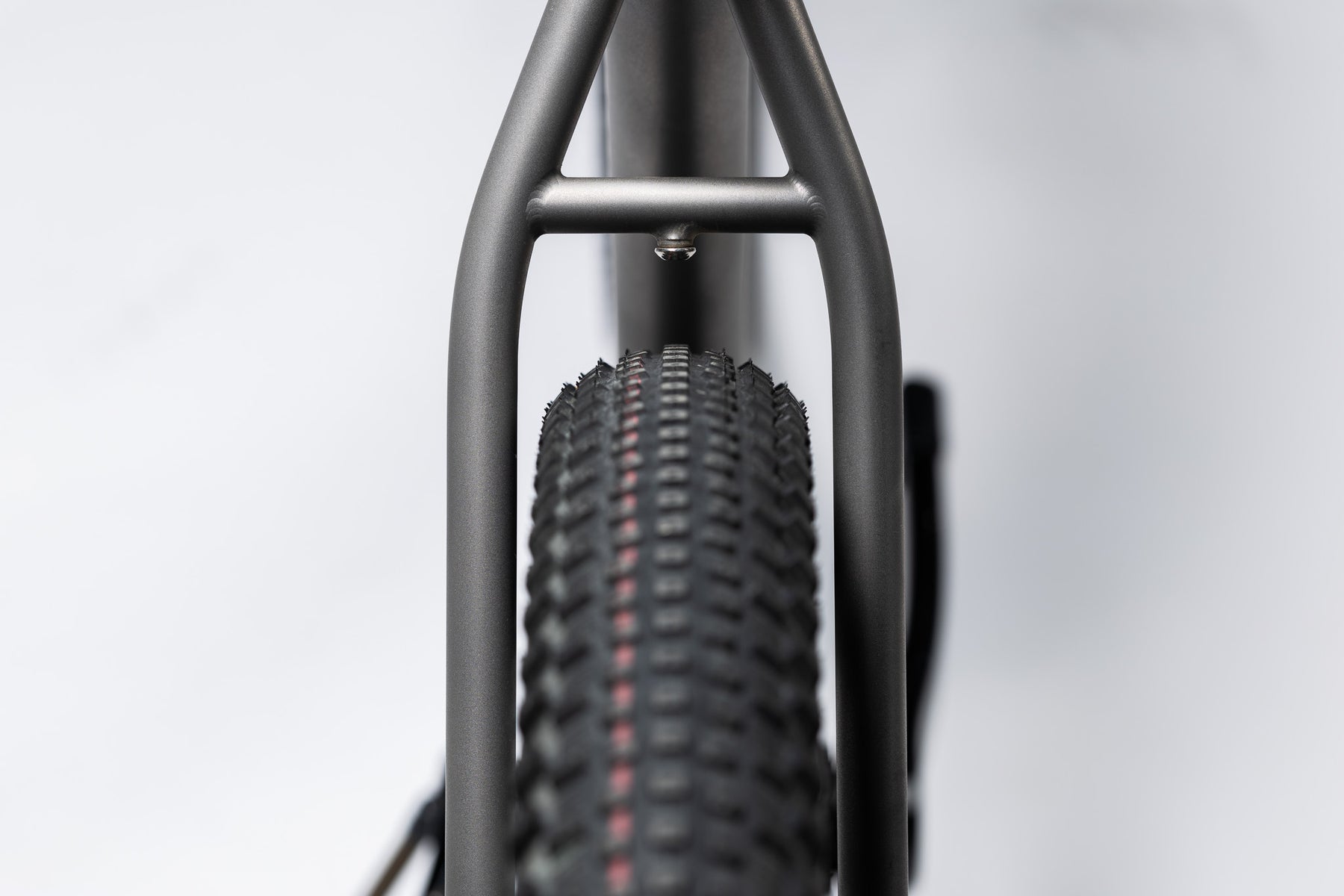

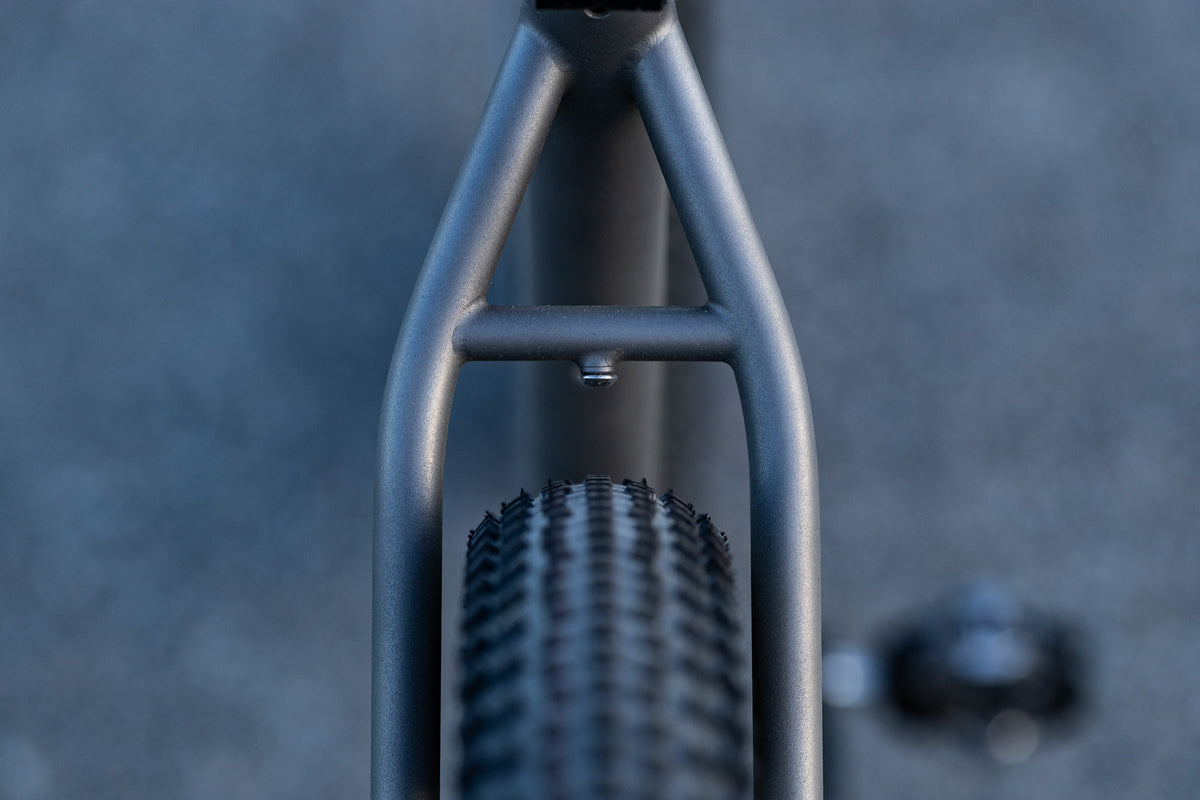

MAX Tire Clearance // 32" x 2.4"

MAX Chainring Clearance // 1x: 38t (55mm chainline)

Dropout Spacing // 148 x 12mm

Rear Axle // M12 x 174mm x 1.0

Brake Mount // Rear - Flat Mount 160mm, Front - Post Mount 160mm

MAX Rotor Size // 160mm

Brake Routing // Internal through frame - Hose enters the downtube just behind the headtube

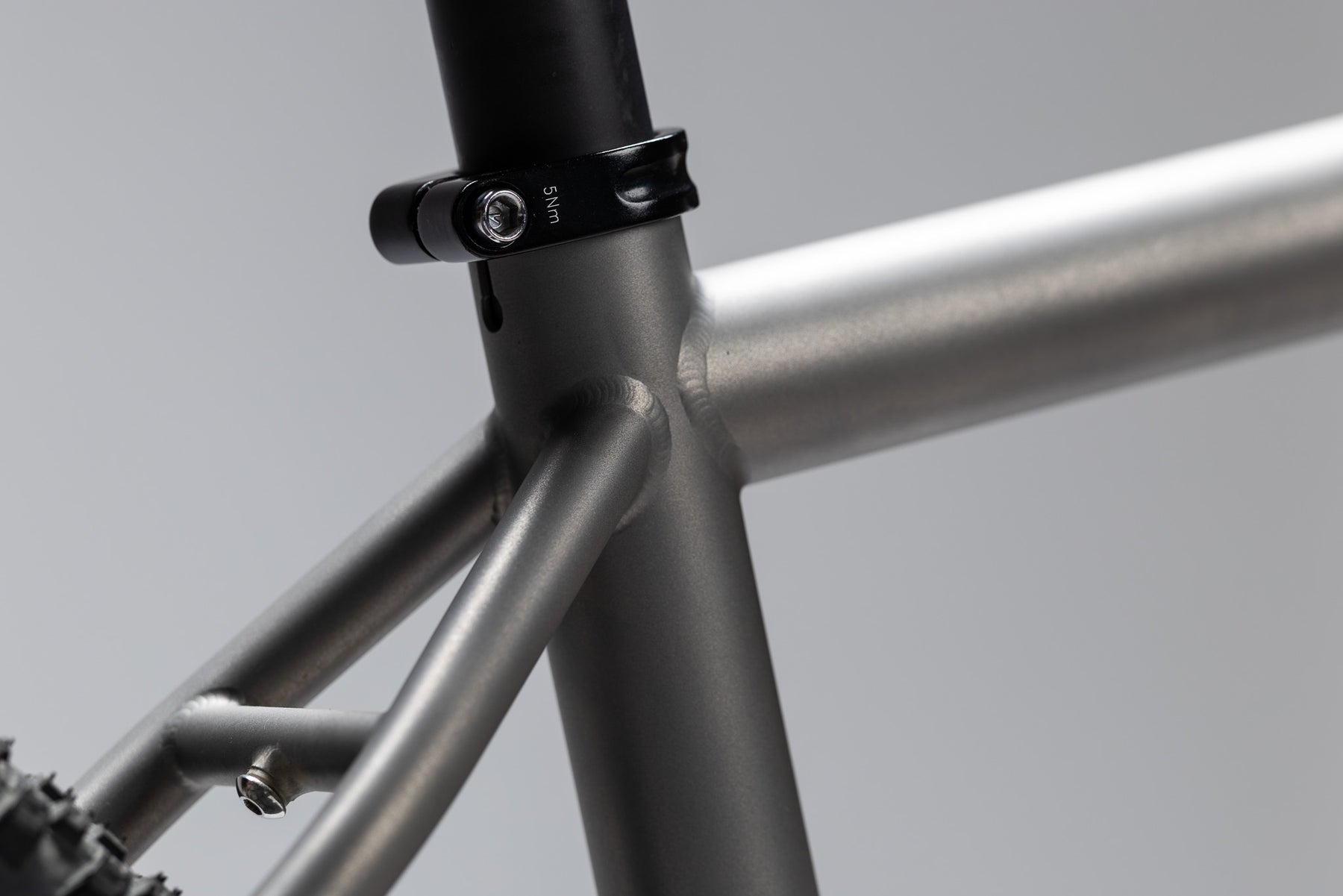

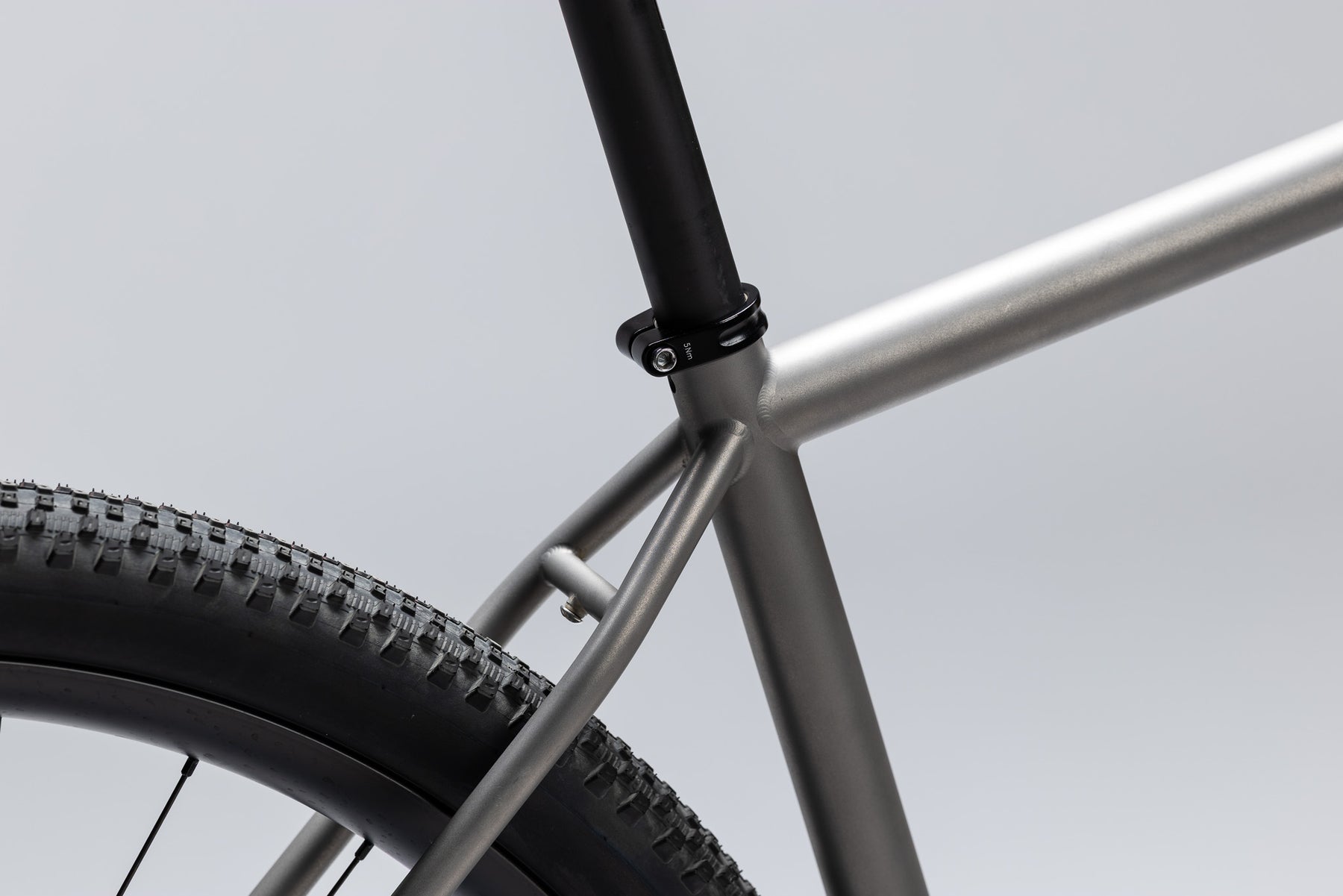

Seatpost Diameter // 31.6mm

Seatpost Clamp Diameter // 34.9mm

Bottom Bracket // T47 73mm wide shell

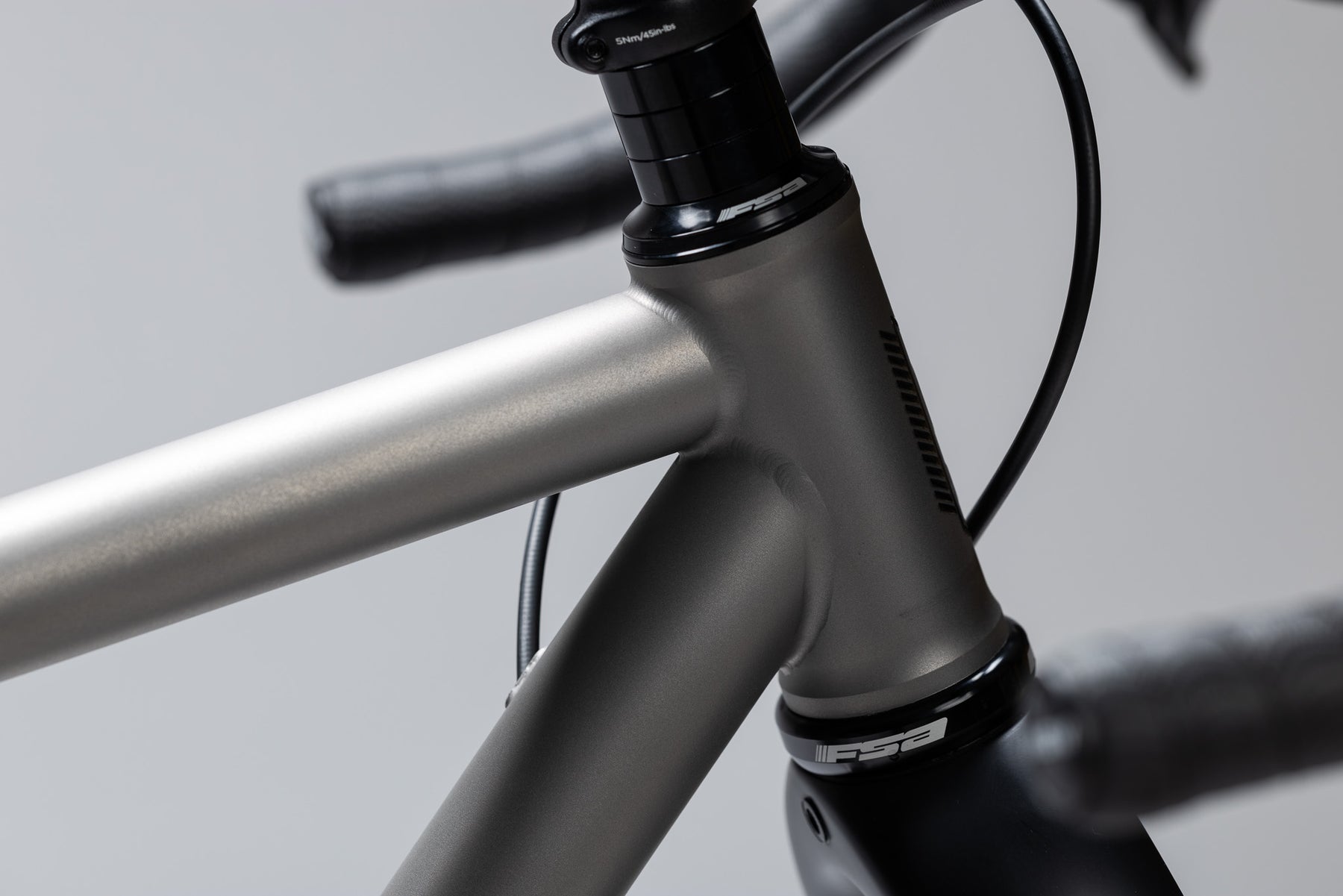

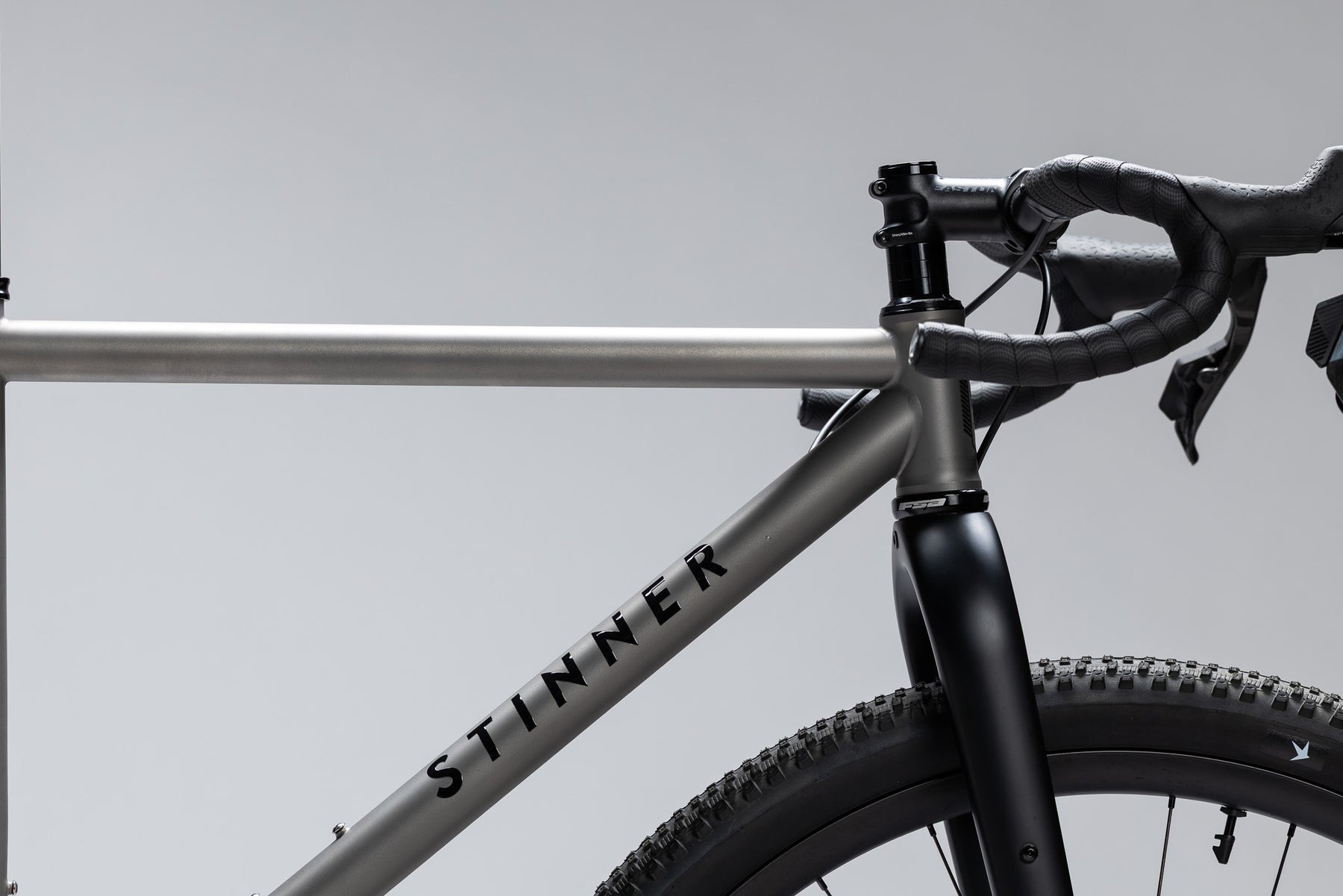

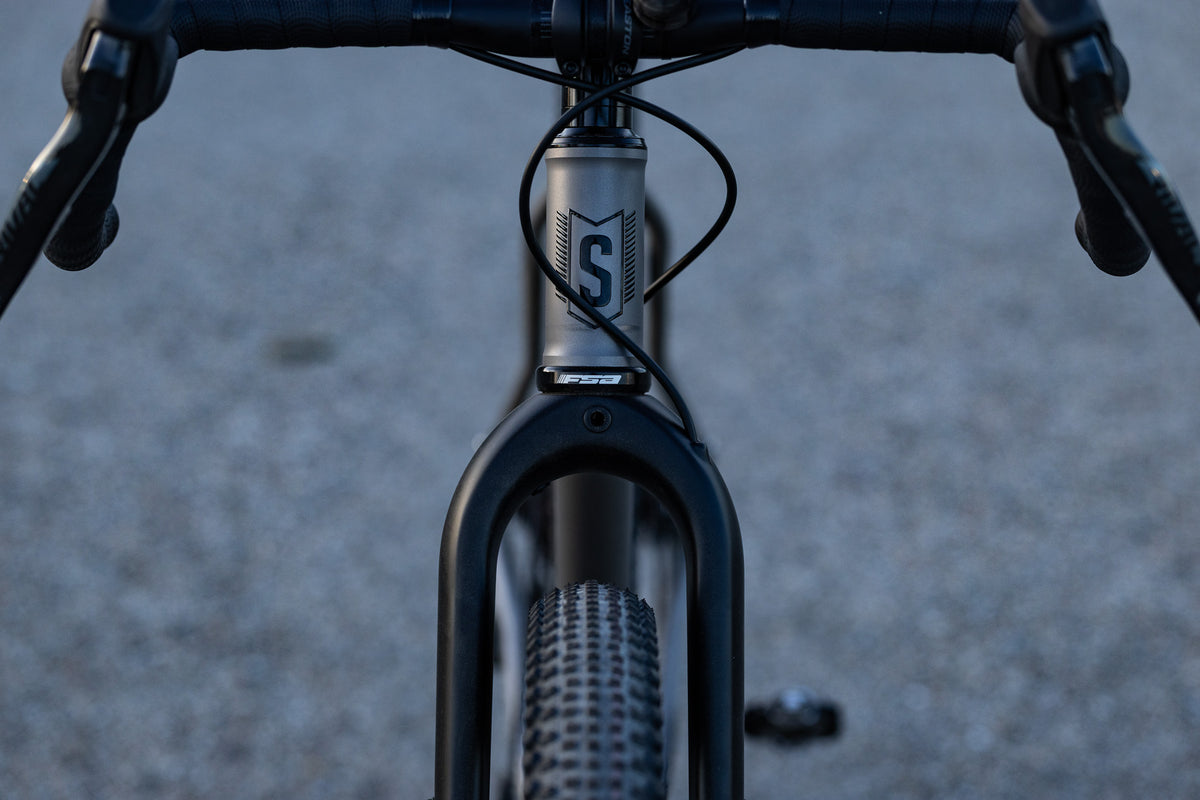

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: ZS44/28.6 - Lower: EC44/40

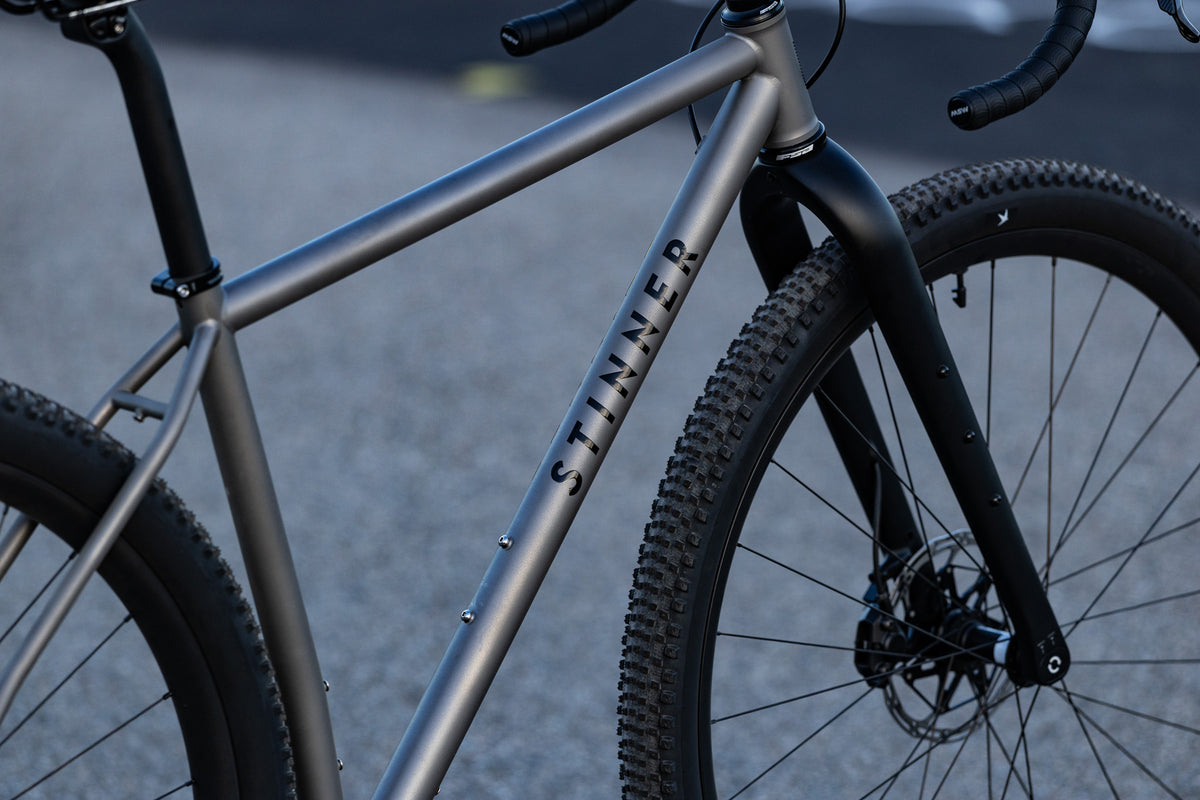

Mounts // 3 bottle cage locations

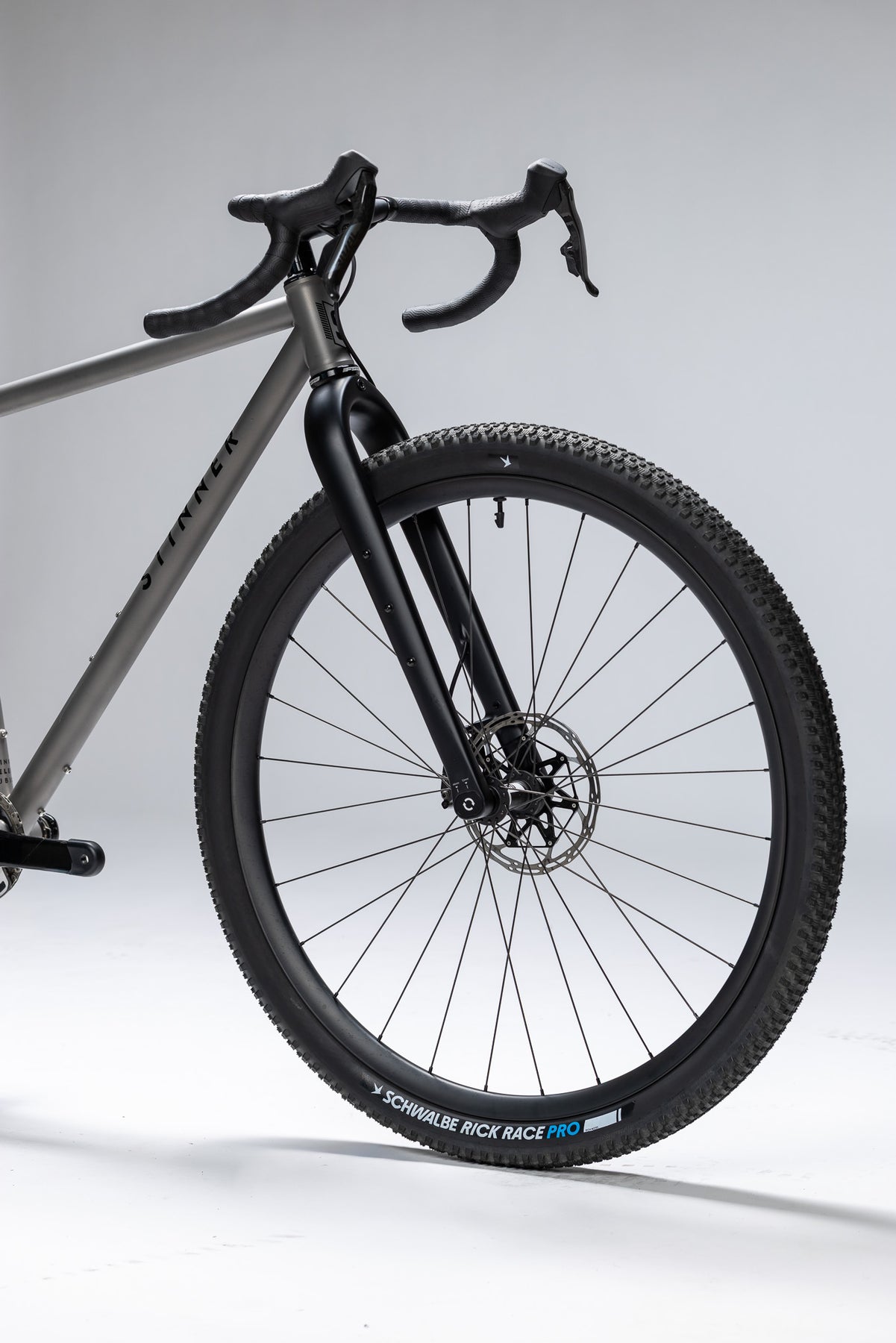

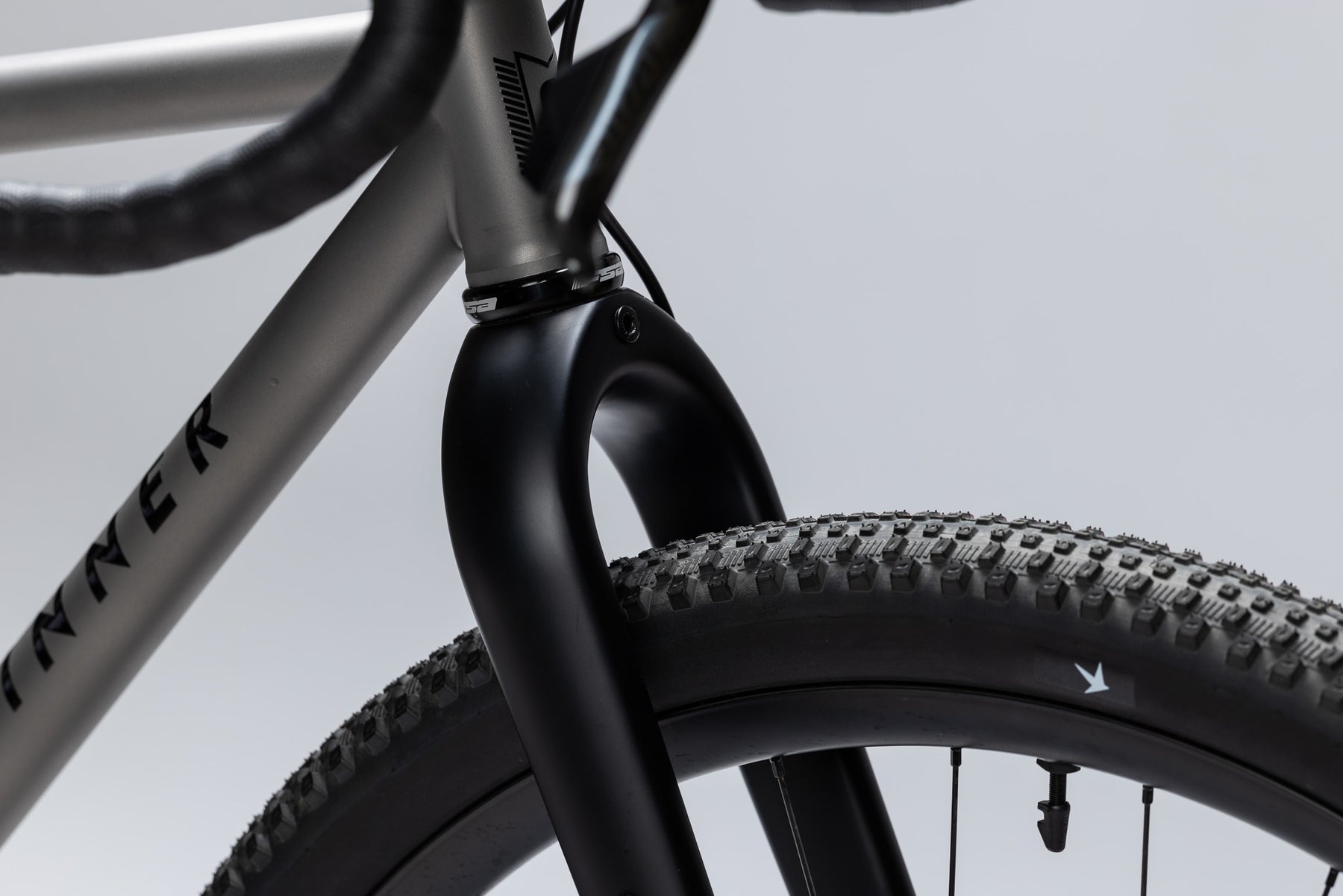

FORK //

Material // Full Carbon

MAX Tire Clearance // 32" x 2.4"

Dropout Spacing // 110 x 15mm

Front Axle // 139mm - M15 x 1.5

Brake Mount // Post Mount 160mm

MAX Rotor Size // 180mm

Brake Routing // External (Internal through non-drive leg)

Steerer // 1.5" Tapered

Steerer Length // 280mm

Crown Race // 40mm

Axle to Crown // 490mm

Rake // 44/52mm

Mounts // Fender Mounts - Triple mounts on each fork leg (maximum load of 6lbs per fork leg) - Front light mount with internal dynamo wire routing

WHEELSET //

Front Wheel // Stoic Carbon Rim, Hookless 32mm internal, 25mm depth, Tubeless, DT Swiss 350 Classic Hub, 110x15mm, 32h, Center Lock

Rear Wheel // Stoic Carbon Rim, Hookless 32mm internal, 25mm depth, Tubeless, DT Swiss 350 Classic Hub, 148x12mm, 32h, Center Lock, XD or Microspline Driver

Build Kit Details //

Please note: Based on component availability, specifications are subject to change without notice.

COCKPIT //

Stem // Zipp Service Course, 6°, 70mm length

Headset // FSA Orbit - Upper: ZS44/28.6, Lower: EC44/40

Handlebar // Stoic Gravel HB

Bar Tape // MSW HBT-210

Seatpost // Zipp Service Course, 31.6mm diameter, 350mm length, 20mm setback

Seat Collar // Kalloy SC-201 Bolt-on

Saddle // WTB Silverado 265 Medium 142mm, Steel Rails

Pedals // Not Included

DRIVETRAIN //

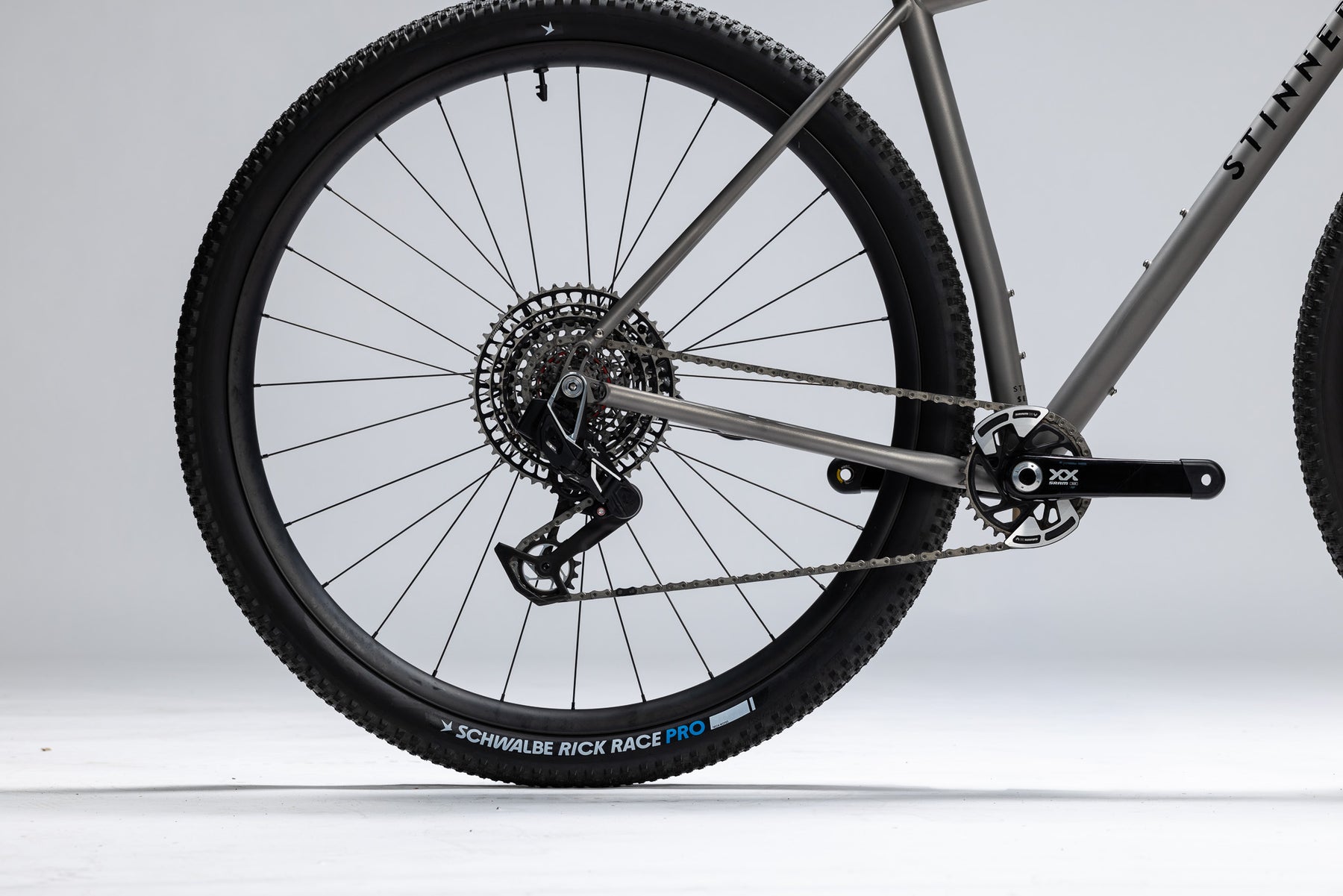

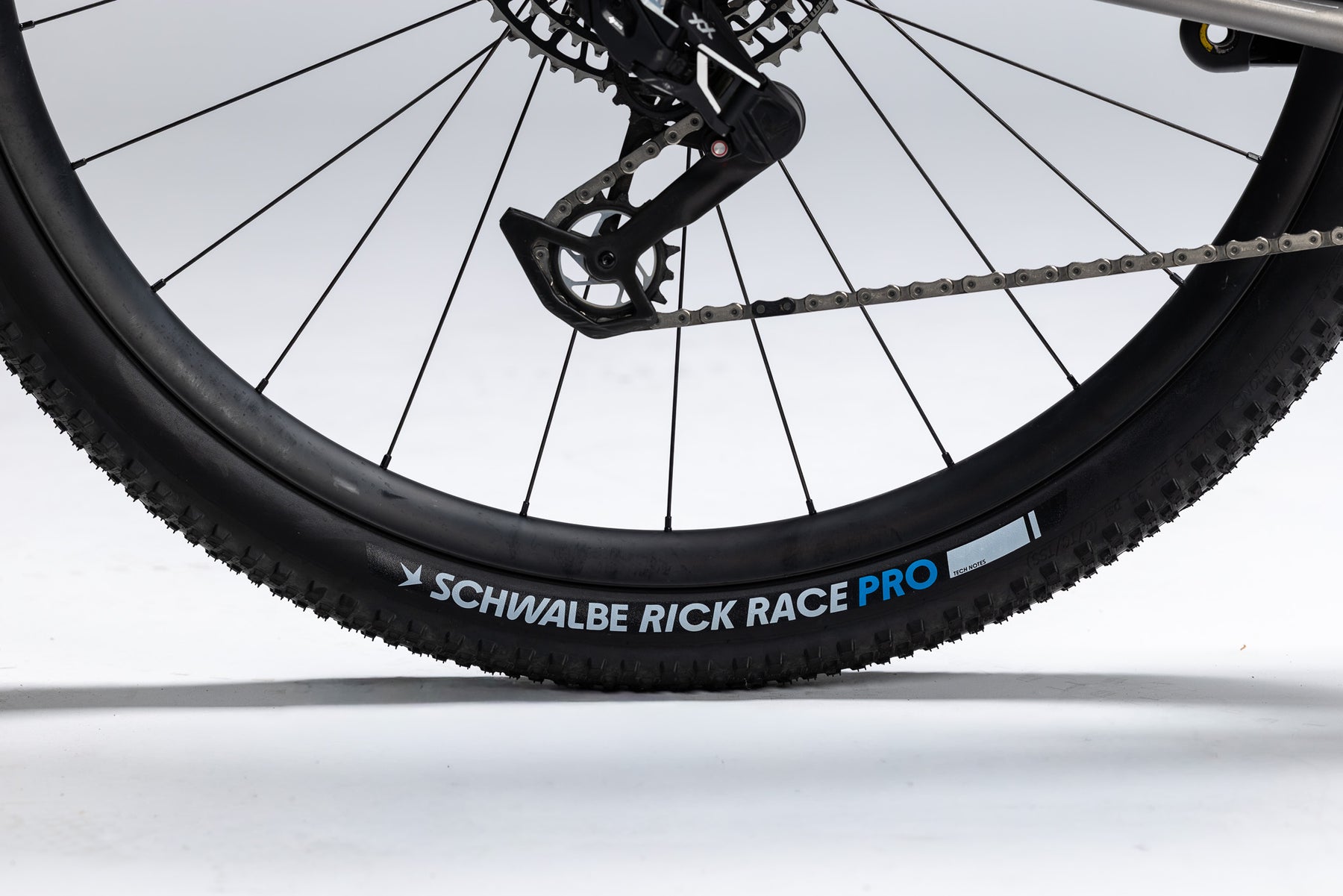

Rear Groupset // SRAM GX T-Type Transmission AXS - 165mm cranks, 32t chainring

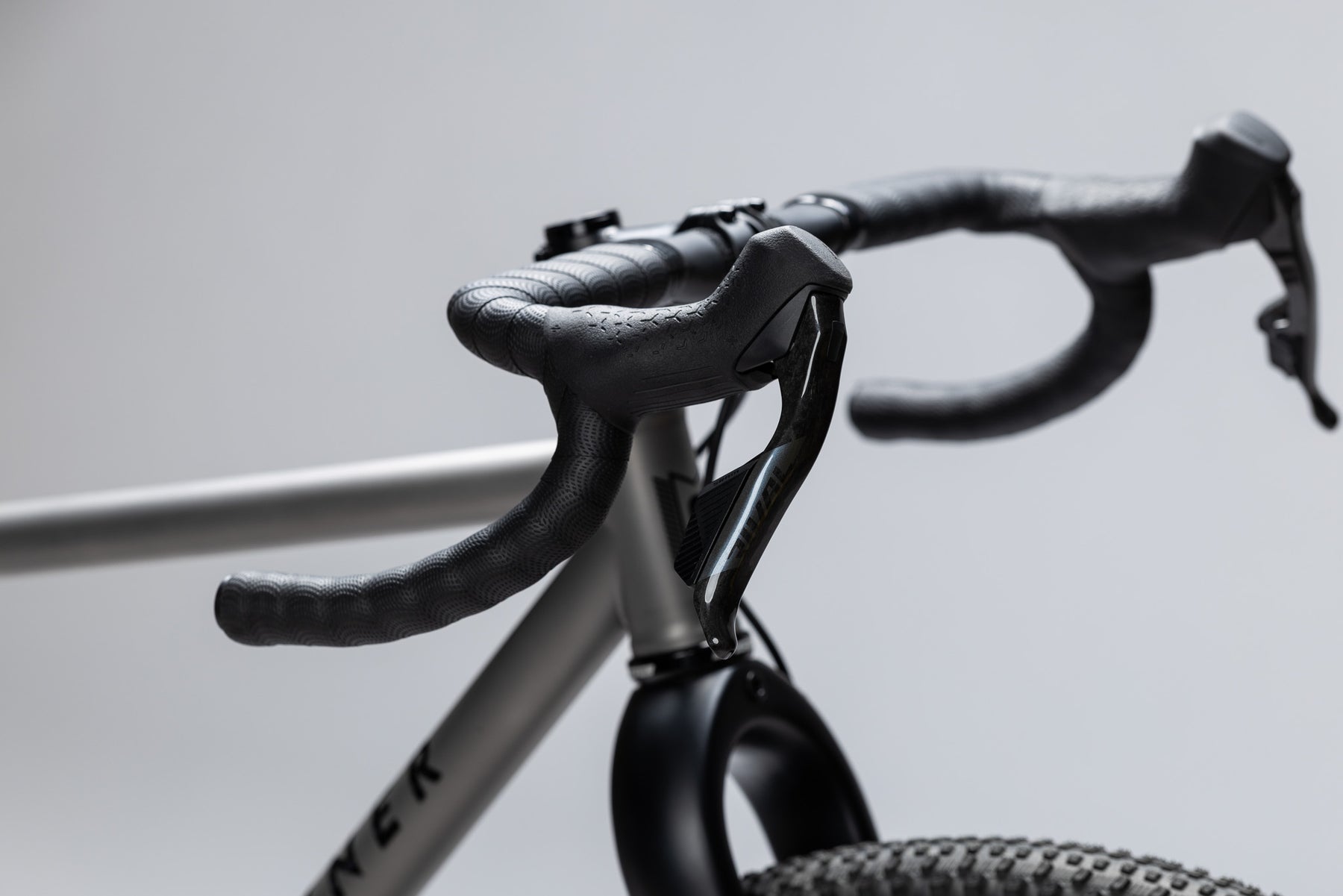

Shift/Brake Levers (Rear) // SRAM Rival AXS E1 Stealthamajig Connected Rear Brake

Shift/Brake Levers (Front) // SRAM Rival AXS E1 Stealthamajig Connected Front Brake

Flat Mount Adapter // Wolf Tooth Post to Flat Mount Adapter

BRAKES //

Front Rotor // SRAM Centerline 180mm

Rear Rotor // SRAM Centerline 160mm

WHEELSET //

Front Wheel // Stoic Carbon Rim, Hookless 32mm internal, 25mm depth, Tubeless, DT Swiss 350 Classic Hub, Boost 110x15mm, 32h, Center Lock

Rear Wheel // Stoic Carbon Rim, Hookless 32mm internal, 25mm depth, Tubeless, DT Swiss 350 Classic Hub, Boost 148x12mm, 32h, Center Lock, XD Driver

Front Tire // Maxxis Aspen 32" x 2.4"

Rear Tire // Maxxis Aspen 32" x 2.4"

GEOMETRY CHART & FRAME DRAFTS //

With a Complete //

All parts listed under the complete build kit specifications will be fully installed, tuned, and ready to ride*

*Some assembly will be required out of the box

Wheels // Will ship setup tubeless with sealant installed

Charger // SRAM AXS single battery charger

Documentation // Welcome to the Stinner Family

With a Frameset //

Fork // Refugio Carbon Fork

Headset // Not Included - CLICK HERE for compatible headset options

Hanger // SRAM UDH

Rear Axle // Stinner Select UDH - 166mm x M12 x 1.0

Front Axle // Stinner Select - 120mm x M12 x 1.5 w/ Brass Washer

Bottle Boss Bolts // QTY. 12 Stainless Bolts

Chainstay Protector // Clear Vinyl - Installed

Brake Sleeve // Foam brake sleeve for internal DT portion

Flat Mount Bolts // Rear - 22mm long w/washers

Expander Plug // Stinner Select Expander Plug for Carbon Steerer

Seat Post Clamp // Stinner Select 31.8mm

Documentation // Welcome to the Stinner Family

What other drivetrains work well on the Refugio Podium?

- Any SRAM AXS (wireless) drivetrain works great. The frame is UDH compatible, so you are able to run any Transmission/Full Mount rear derailleur. If using a 1x drivetrain be sure to spec a WIDE version of the crankset you intend to use. If you opt for a 2x drivetrain you need a WIDE crankset and the largest chainring combination should not exceed 43/30t (47.5mm chainline minimum).

- Any Shimano Di2 (electronic) 12spd 1x drivetrain will fit up nicely. The drive side dropout breather hole is large enough for the rear E-Tube wire to pass through. Make sure the crankset you spec has a minimum chainline of 47.5mm. The frame is not currently compatible with 2x Di2 12spd drivetrains.

I am thinking of running mechanical disc brakes, do they all work?

- The Refugio Podium is optimized for flat mount hydraulic brakes (See Frameset Technical Specifications). While there are many cable actuated flat mount disc brakes that will work well (TRP Spyre, Growtac Equal), there are some that do not work well due to how the cables need to route (Paul Klampers).

Can you tell me more about the Bead Blasted Finish?

- Both decal options will come with the same bead blasted frame finish. We take the raw titanium frame and bead blast it to give it a nice, uniform matte finish for a timeless look. Titanium does not corrode, so there is no need to seal the frame with a top coat.

If you choose Polished Ti Decals, all the Stinner decals will be raw titanium that we hand polish to give a bright, gloss finish. A subtle contrast to the bead blasted finish.

If you choose Black Decals all the Stinner decals will be a satin black finish. The bolder option for those who want to show their appreciation for this made in the USA frame.

Can you help me understand chainline for the Refugio Podium?

The minimum chainline to ensure proper fitment of a 1x chainring is 47.5mm. That means that the center of the chainring teeth sit 47.5mm outboard from the centerline of the frame. The max chainring that will fit with a 47.5mm chainline is a 42t. Other set-ups might work, but we cannot ensure fitment if your set-up is anything other than the stated 47.5mm 1x chainline.

To check your 1x chainline you can measure the distance from your chainring teeth to the closest point on the seat tube. Take that measurement and add 14.5mm (29mm thickness of the Carrizo seat tube divided in half).

The minimum chainline to ensure proper fitment of a 2x set-up is 47.5mm. The chainline on a 2x chainring set-up is measured from the center of the distance between the two chainrings. The max chainring combination that will fit with a 47.5mm chainline is a 43/30t. Other set-ups might work, but we cannot ensure fitment if your set-up is anything other than the stated 47.5mm 2x chainline or if you run larger than 43/30t chainrings.

To check your 2x chainline you can measure the distance from your outer chainring teeth to the closest point on the seat tube. Repeat that for the inner chainring. Subtract the inner ring distance from the outer ring distance and divide that number by half. Add that value to the inner ring distance then add 14.5mm (29mm thickness of the Carrizo seat tube divided in half).

MORE INFO COMING...

If you have a question that you cannot find the answer to please use the below "Ask a Question" form.
