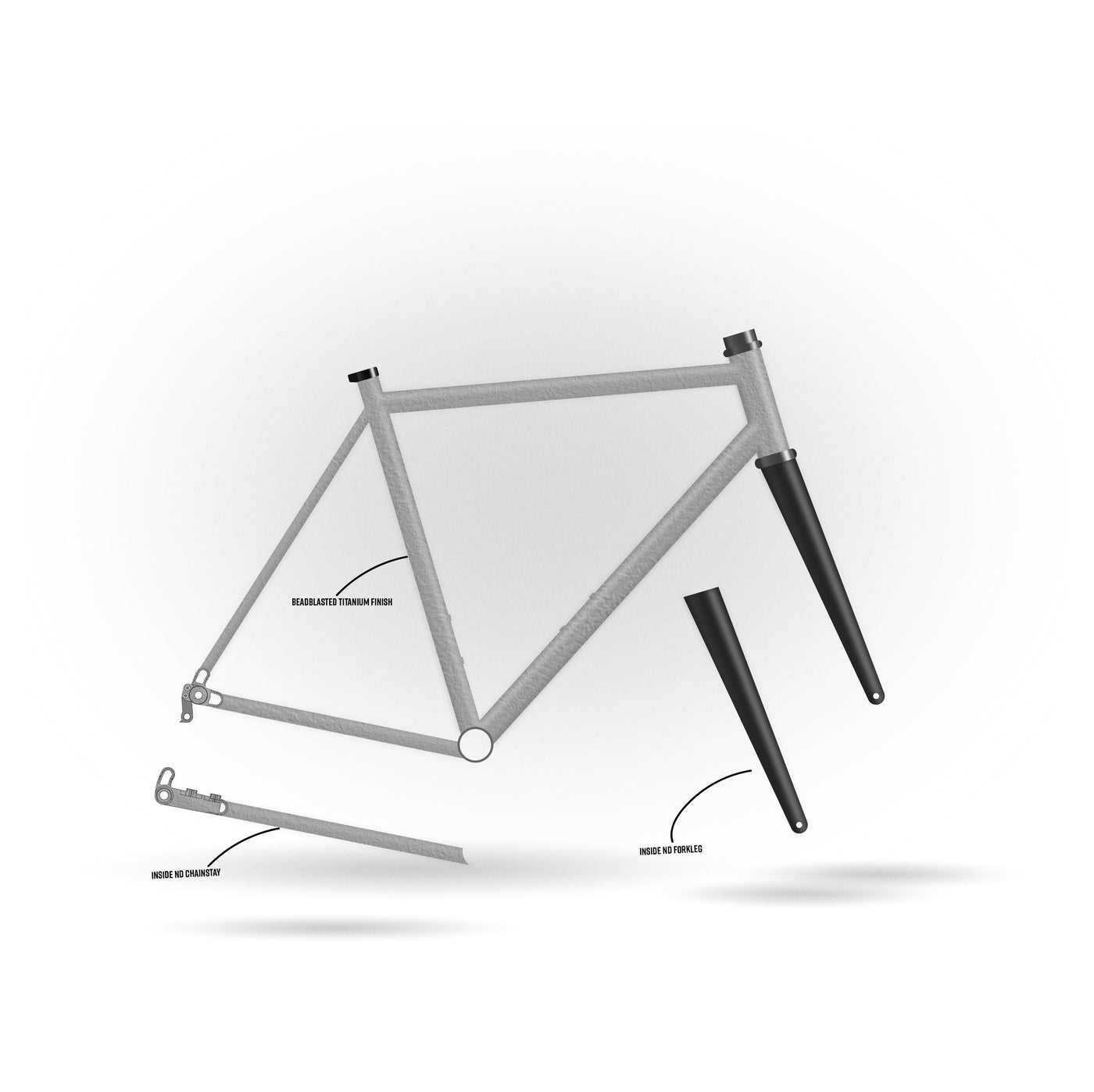

Gibraltar - Beadblasted Ti

$4,599.00

Please be patient while the configurator options load.
For best viewing, turn computer or phone brightness all the way up!
Size chart

2024 GIBRALTAR ROAD DISC


Gibraltar 50 52 54 56 58 60

A

Stack 524 537 554 575 601 622
B Reach 377 382 388 392 399 407
C Top Tube Length, Horizontal 519 532 548 563 577 597
D Head Tube Length 107 118 137 158 184 205
E Head Tube Angle 71.5° 72.5° 72.75°

73°

73.25° 73.5°
F BB Height* 271 271 273 273 273 273
G BB Drop 74 74 72 72 72 72
H Seat Tube Angle 75° 74.5° 74° 73.5° 73.5° 73°
I Trail* 70 64 62 61 59 57
J Front Center 578 578 587 595 607 619
K Chainstay Length 408 410 410 412 412 414
L Wheelbase 974 976 986 996 1009 1022
M Standover Height* 755 771 790 810 833 852
N Seat Tube Length (center - top) 500 520 540 560 580 600

 *w/ 32c tires

All Measurements in mm



  • Free shipping within the US

Get it between -


How to Submit an Order:
Step 1: Add to Cart // Review Order Options In Cart
Step 2: Add Order Notes // Checkout
Step 3: Use "Submit Order" Payment Option
Step 4: We will be in touch to finalize your Stinner Gibraltar details.
* We are currently working on a way to save your configured bike, but as of now, we don't have a way to save your selection. If you want to save your configured bike, please take a screen shot for future reference. Thanks!

FRAME

Drivetrain Compatibility // SRAM eTap / Shimano Di2 12spd / Campagnolo Wireless

Tire Range // 700 x 25 - 32c

MAX Tire Clearance // 700 x 32mm

MAX Chainring Clearance // 2x: 53/39t 1x: 50t

Dropout Spacing // 142 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Fully integrated routing through Bar/Stem/Frame

Seapost Diameter // 27.2mm

Seatpost Clamp Diameter // 31.8mm

Front Derailleur Clamp Diameter // 31.8mm

Bottom Bracket // T47 68mm Wide Shell - BB Requires Spindle Sleeve

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: EC44/28.6 Lower: EC44/40

FORK

MAX Tire Clearance // 700 x 32mm

Dropout Spacing // 100 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Internal

Steerer // 1.5" Tapered

Steerer Length // 300mm

Crown Race // 40mm

Axle to Crown // 370.5mm

Rake // 43mm

2024 GIBRALTAR ROAD DISC


Gibraltar 50 52 54 56 58 60

A

Stack 524 537 554 575 601 622
B Reach 377 382 388 392 399 407
C Top Tube Length, Horizontal 519 532 548 563 577 597
D Head Tube Length 107 118 137 158 184 205
E Head Tube Angle 71.5° 72.5° 72.75°

73°

73.25° 73.5°
F BB Height* 271 271 273 273 273 273
G BB Drop 74 74 72 72 72 72
H Seat Tube Angle 75° 74.5° 74° 73.5° 73.5° 73°
I Trail* 70 64 62 61 59 57
J Front Center 578 578 587 595 607 619
K Chainstay Length 408 410 410 412 412 414
L Wheelbase 974 976 986 996 1009 1022
M Standover Height* 755 771 790 810 833 852
N Seat Tube Length (center - top) 500 520 540 560 580 600

 *w/ 32c tires

All Measurements in mm



This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Width wins
700 x 32c Tire

Large volume road tires. Gone are the days of 25c road tires. Larger volume and lower tire pressure rain supreme. The Gibraltar is designed to accomodate up to a 32c road tire.

No hoses to be seen
Full Internal

The Gibraltar features a fully internal cockpit to keep a stunningly clean look. Choose from Chris King, ENVE, or FSA.

Designed by us
Titanium Dropouts

Designed from the ground up. We were tired of using off the shelf components to build our frames. We invested in designing and sourcing our parts to build a better product.

Bigger is better
T47 Bottom Bracket

Larger diameter bottom bracket allows us to tailor the ride and to hide unsightly cables.

FAQs

We have a size chart here for the Gibraltar model with all of the XY measurements to help you find the perfect fit.

We'd love to customize a bike to fit your needs. To do so, we ask that you submit a professional fit document along with your order. You will find the link to submit that under the 'Size' dropdown in the configurator. Once we receive it, we will review it and get back to you with a custom draft. If you are unsure if you need a custom size, please feel free to reach out and ask.

We like to think that we offer the best colors available already, on the configurator. If you have a color you would like to explore, let us know. We do charge extra for color exploration. Charges vary depending on the color request. Feel free to reach out to us to get the conversation started.

Right now, we recommend taking a screenshot of your design! Throw it in a folder, print it out, pin it to a wall, think on it, send it in!

We are working on getting our store populated with real life paint swatches for you to purchase. We have done our best to represent these colors digitally. Please make sure to turn the brightness on your device all the way up for the best color reference.
