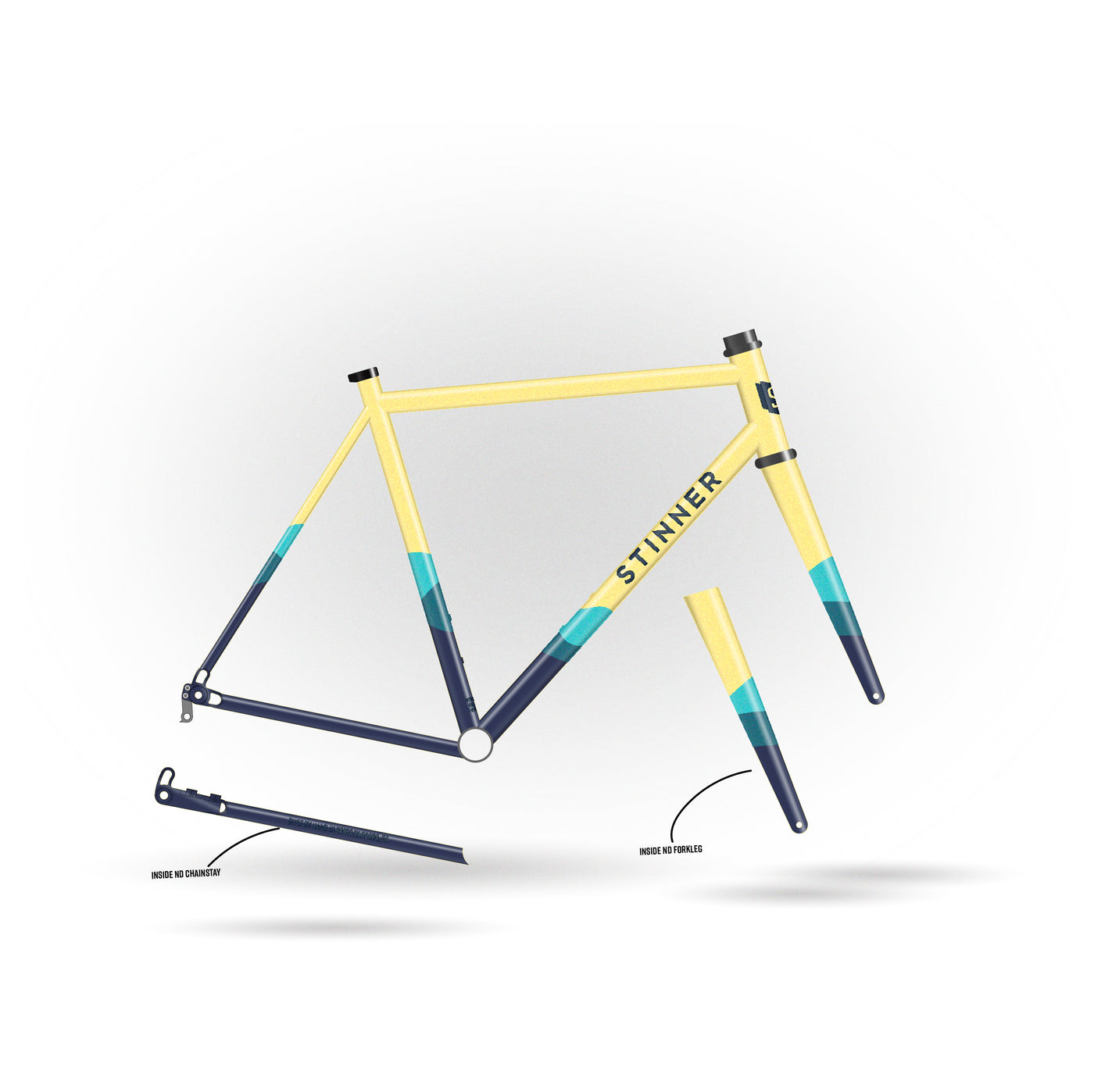

Gibraltar - Flow

$4,649.00

Please be patient while the configurator options load.
For best viewing, turn computer or phone brightness all the way up!
Size chart





Gibraltar 50cm 52cm 54cm 56 58 60
Stack 524 537 554 575 601 622
Reach 377 382 388 392 399 407
Top Tube Length, Horizontal 519 532 548 563 577 594
Head Tube Length 103 113 132 153 179 200
Head Tube Angle 71.5° 72.5° 72.75°

73°

73.25° 73.5°
BB Height* 269 269 271 271 271 271
BB Drop 76 76 74 74 74 74
Seat Tube Angle 75° 74.5° 74° 73.5° 73.5° 73.25°
Trail* 70 64 62 61 59 57
Front Center 577 577 587 595 607 619
Chainstay Length 412 412 412 412 412 412
Wheelbase 977 977 987 995 1008 1019
Standover Height* 756 772 792 811 834 854
Seat Tube Length (center - top) 500 520 540 560 580 600







 *w/ 32c tires // All Measurements in mm






  • Free shipping within the US

Get it between -


How to Submit an Order:
Step 1: Add to Cart // Review Order Options In Cart
Step 2: Add Order Notes // Checkout
Step 3: Use "Submit Order" Payment Option
Step 4: We will be in touch to finalize your Stinner Gibraltar details.
* We are currently working on a way to save your configured bike, but as of now, we don't have a way to save your selection. If you want to save your configured bike, please take a screen shot for future reference. Thanks!

FRAME

Drivetrain Compatibility // SRAM eTap / Shimano Di2 12spd / Campagnolo Wireless

Tire Range // 700 x 25 - 32c

MAX Tire Clearance // 700 x 32mm

MAX Chainring Clearance // 2x: 53/39t 1x: 50t

Dropout Spacing // 142 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Fully integrated routing through Bar/Stem/Frame

Seapost Diameter // 27.2mm

Seatpost Clamp Diameter // 31.8mm for Titanium - 29.8mm for Steel

Front Derailleur Clamp Diameter // 31.8mm for Titanium - 28.6mm for Steel

Bottom Bracket // T47 68mm Wide Shell - BB Requires Spindle Sleeve

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: EC44/28.6 Lower: EC44/40

FORK

MAX Tire Clearance // 700 x 32mm

Dropout Spacing // 100 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Internal

Steerer // 1.5" Tapered

Steerer Length // 300mm

Crown Race // 40mm

Axle to Crown // 370.5mm

Rake // 43mm





Gibraltar 50cm 52cm 54cm 56 58 60
Stack 524 537 554 575 601 622
Reach 377 382 388 392 399 407
Top Tube Length, Horizontal 519 532 548 563 577 594
Head Tube Length 103 113 132 153 179 200
Head Tube Angle 71.5° 72.5° 72.75°

73°

73.25° 73.5°
BB Height* 269 269 271 271 271 271
BB Drop 76 76 74 74 74 74
Seat Tube Angle 75° 74.5° 74° 73.5° 73.5° 73.25°
Trail* 70 64 62 61 59 57
Front Center 577 577 587 595 607 619
Chainstay Length 412 412 412 412 412 412
Wheelbase 977 977 987 995 1008 1019
Standover Height* 756 772 792 811 834 854
Seat Tube Length (center - top) 500 520 540 560 580 600







 *w/ 32c tires // All Measurements in mm






This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Width wins
700 x 32c Tire

Large volume road tires. Gone are the days of 25c road tires. Larger volume and lower tire pressure reign supreme. The Gibraltar is designed to accomodate up to a 32c road tire.

No hoses to be seen
Full Internal

The Gibraltar features a fully internal cockpit to keep a stunningly clean look. Choose from Chris King, ENVE, or FSA.

Designed by us
Titanium Dropouts

Designed from the ground up. We were tired of using off the shelf components to build our frames. We invested in designing and sourcing our parts to build a better product.

Bigger is better
T47 Bottom Bracket

Larger diameter bottom bracket allows us to tailor the ride and to hide unsightly cables.

FAQs

We have a size chart here for the Gibraltar model with all of the XY measurements to help you find the perfect fit.

We'd love to customize a bike to fit your needs. To do so, we ask that you submit a professional fit document along with your order. You will find the link to submit that under the 'Size' dropdown in the configurator. Once we receive it, we will review it and get back to you with a custom draft. If you are unsure if you need a custom size, please feel free to reach out and ask.

We like to think that we offer the best colors available already, on the configurator. If you have a color you would like to explore, let us know. We do charge extra for color exploration. Charges vary depending on the color request. Feel free to reach out to us to get the conversation started.

Right now, we recommend taking a screenshot of your design! Throw it in a folder, print it out, pin it to a wall, think on it, send it in!

We are working on getting our store populated with real life paint swatches for you to purchase. We have done our best to represent these colors digitally. Please make sure to turn the brightness on your device all the way up for the best color reference.
