Gibraltar Podium

Frameset Technical Specifications //

FRAME //

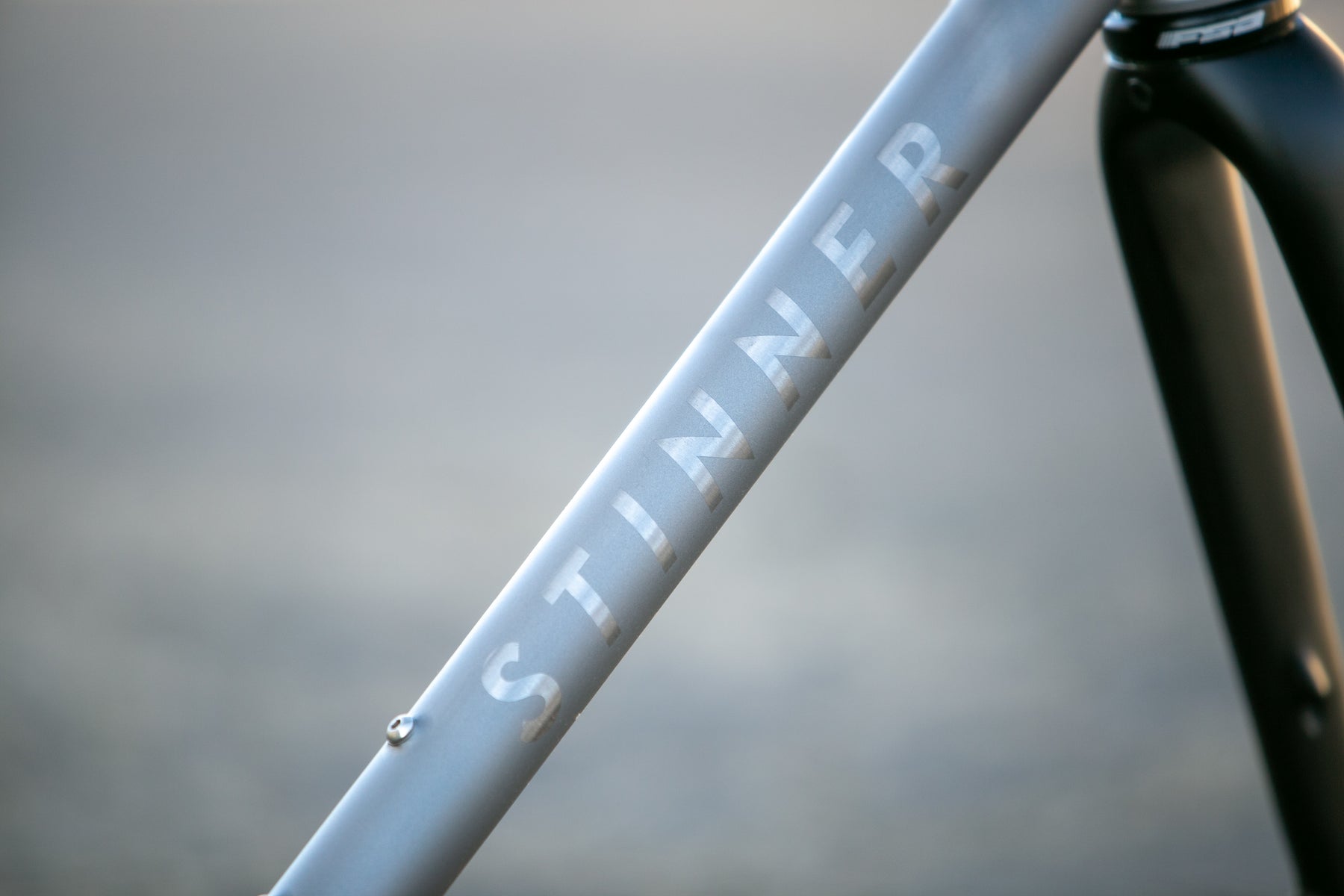

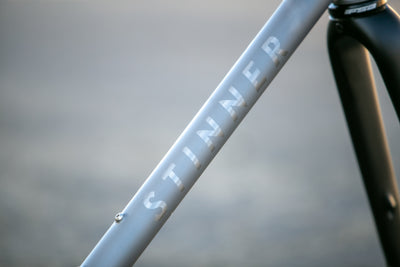

Material // Titanium - Straight Gauge Tubeset

Finish // Bead Blasted Raw Ti

Dropouts // Stinner UDH 160mm Flat Mount CNC Ti Dropouts

Drivetrain Compatibility // SRAM AXS 2x or 1x - Transmission/Full Mount compatible // Shimano Di2 12spd 2x

MAX Tire Clearance // 700 x 32mm

MAX Chainring Clearance // 2x: 53/39t (44.5mm chainline) 1x: 54t (45mm chainline)

Dropout Spacing // 142 x 12mm

Rear Axle // 166mm - M12 x 1.0 - 15mm threaded portion

Brake Mount // Flat Mount 160mm

MAX Rotor Size // 160mm

Brake Routing // Internal through frame - Hose enters the downtube just behind the headtube

Seatpost Diameter // 27.2mm

Seatpost Clamp Diameter // 31.8mm

Front Derailleur Clamp Diameter // 31.8mm

Bottom Bracket // T47 68mm wide shell

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: ZS44/28.6 - Lower: EC44/40

Mounts // 2 bottle mounts in main triangle

FORK //

Material // Full Carbon

MAX Tire Clearance // 700 x 32mm

Dropout Spacing // 100 x 12mm

Front Axle // 120mm - M12 x 1.5

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // External - Internal through non-drive leg

Steerer // 1.5" Tapered

Steerer Length // 300mm

Crown Race // 40mm

Axle to Crown // 372mm

Rake // 43mm

Weight // 420g

Build Kit Details //

COCKPIT //

Stem // Easton EA70 Alloy - 50cm/52cm: 90mm length // 54cm/56cm: 100mm length // 58cm/60cm: 110mm length

Headset // FSA Orbit - Upper: ZS44/28.6, Lower: EC44/40

Handlebar // Easton EA70 Alloy - Reach: 80mm, Drop: 125mm - 50cm/52cm: 40cm width // 54cm/56cm: 42cm width // 58cm/60cm: 44cm width

Bar Tape // Stinner Select - Black

Seatpost // Easton EC70 ISA Carbon - 27.2mm x 350mm length, 20mm offset

Seat Collar // Stinner Select 31.8mm

Saddle // WTB Silverado 265 Medium 142mm, Ti rails

Pedals // Not Included

DRIVETRAIN //

Bottom Bracket // SRAM DUB T47 68mm

Crankset // SRAM Rival 2x - 50cm/52cm: 170mm length // 54cm/56cm: 172.5mm length // 58cm/60cm: 175mm length

Chainrings // SRAM Rival 2x - 46/33t

Chain // SRAM Rival Flat Top 12spd

Cassette // SRAM Rival 10/36t

Front Shifter // SRAM Rival AXS

Rear Shifter // SRAM Rival AXS

Front Derailleur // SRAM Rival AXS

Rear Derailleur // SRAM Rival AXS

Front Brake // SRAM Rival Hydraulic

Rear Brake // SRAM Rival Hydraulic

Front Rotor // SRAM Centerline CL 160mm

Rear Rotor // SRAM Centerline CL 160mm

Charger // SRAM AXS Charger

Battery // SRAM AXS Battery x2

Hanger // SRAM UDH

WHEELSET //

Front Wheel // DT Swiss E1800 Spline 23, Tubeless, 100x12mm, 24h, Center Lock

Rear Wheel // DT Swiss E1800 Spline 23, Tubeless, 142x12mm, 24h, Center Lock, XDR Driver

Front Tire // Goodyear Eagle Tubeless 32c

Rear Tire // Goodyear Eagle Tubeless 32c

Build Kit Details //

COCKPIT //

Stem // Easton EA70 Alloy - 50cm/52cm: 90mm length // 54cm/56cm: 100mm length // 58cm/60cm: 110mm length

Headset // FSA Orbit - Upper: ZS44/28.6, Lower: EC44/40

Handlebar //  Stinner Carbon AR - Reach: 75mm, Drop: 125mm, Flare: 9° - 50cm/52cm: 40cm width // 54cm/56cm: 42cm width // 58cm/60cm: 44cm width

Bar Tape // Stinner Select - Black

Seatpost // Easton EC70 ISA Carbon - 27.2mm x 350mm length, 20mm offset

Seat Collar // Stinner Select 31.8mm

Saddle // WTB Silverado 265 Medium 142mm, Ti rails

Pedals // Not Included

DRIVETRAIN //

Bottom Bracket // SRAM DUB T47 68mm

Crankset // SRAM Force 2x - 50cm/52cm: 170mm length // 54cm/56cm: 172.5mm length // 58cm/60cm: 175mm length

Chainrings // SRAM Force 2x - 46/33t

Chain // SRAM Force Flat Top 12spd

Cassette // SRAM Force 10/36t

Front Shifter // SRAM Force AXS

Rear Shifter // SRAM Force AXS

Front Derailleur // SRAM Force AXS

Rear Derailleur // SRAM Force AXS

Front Brake // SRAM Force Hydraulic

Rear Brake // SRAM Force Hydraulic

Front Rotor // SRAM Centerline CL 160mm

Rear Rotor // SRAM Centerline CL 160mm

Charger // SRAM AXS Charger

Battery // SRAM AXS Battery x2

Hanger // SRAM UDH

WHEELSET //

Front Wheel // Astral Luna Carbon Rim, Hooked 25mm internal, 40mm depth, Tubeless, Astral Stage 1 hub, 100x12mm, Center Lock

Rear Wheel // Astral Luna Carbon Rim, Hooked 25mm internal, 40mm depth, Tubeless, Astral Stage 1 hub, 142x12mm, Center Lock, XDR Driver

Front Tire // Goodyear Eagle Tubeless 32c

Rear Tire // Goodyear Eagle Tubeless 32c

GEOMETRY CHART & FRAME DRAFTS //

With a Complete //

All parts listed under the complete build kit specifications will be fully installed, tuned, and ready to ride*

*Some assembly will be required out of the box

Wheels // Will ship setup tubeless with sealant installed

Charger // SRAM AXS single battery charger

Documentation // Welcome to the Stinner Family

With a Frameset //

Fork // Gibraltar Carbon Fork

Headset // Not Included - CLICK HERE for compatible headset options.

Hanger // SRAM UDH

Rear Axle // Stinner Select UDH - 166mm x M12 x 1.0

Front Axle // Stinner Select - 120mm x M12 x 1.5

Bottle Boss Bolts // QTY. 4 Stainless Bolts

Chainstay Protector // Clear Vinyl - Installed

Flat Mount Bolts // Rear - 22mm long w/washers

Expander Plug // Stinner Select Expander Plug for Carbon Steerer

Frame Plug // Di2 Rubber Plug

Seat Post Clamp // Stinner Select 31.8mm

Hose Protection // Foam Hose Sleeve

Documentation // Welcome to the Stinner Family
