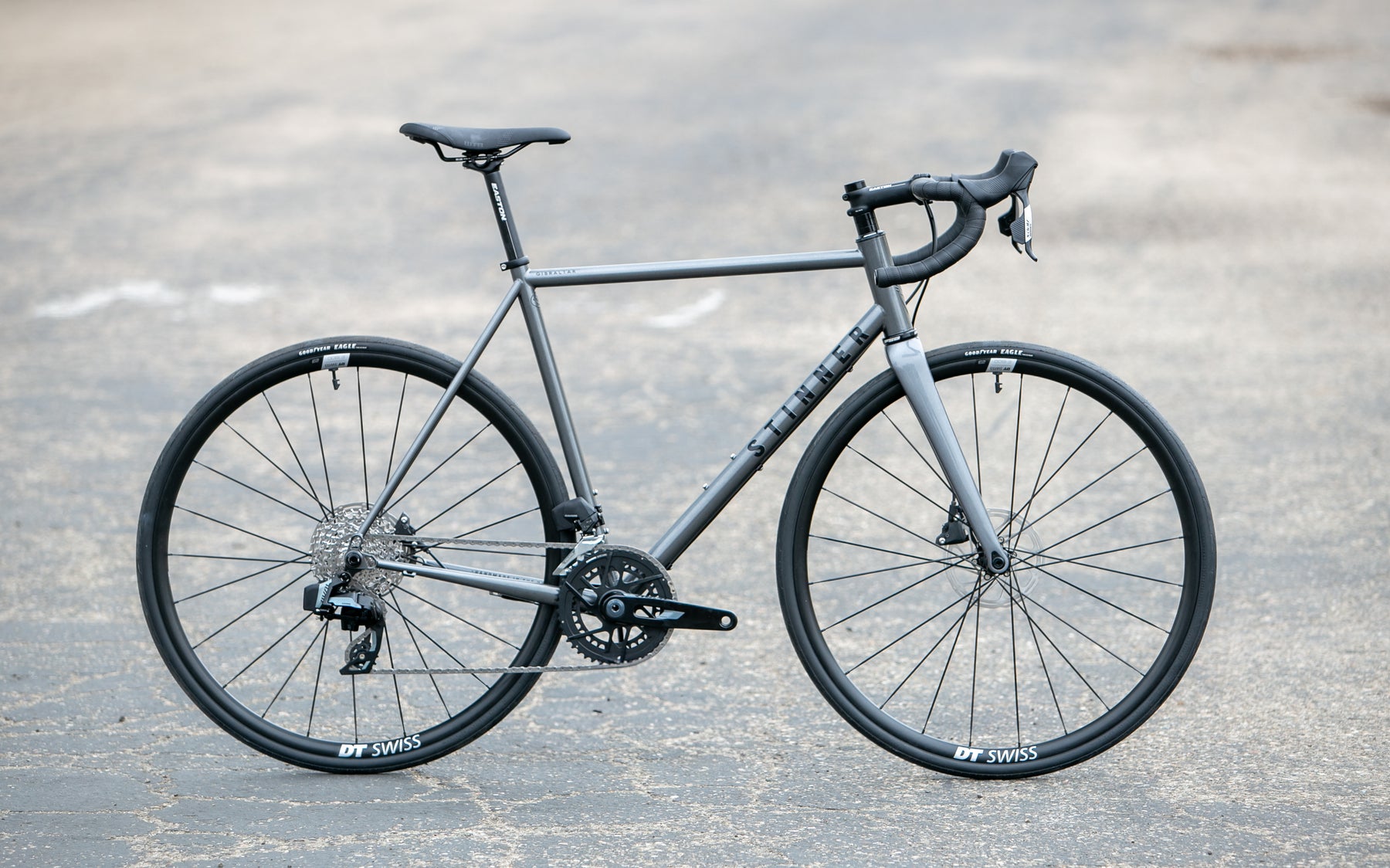

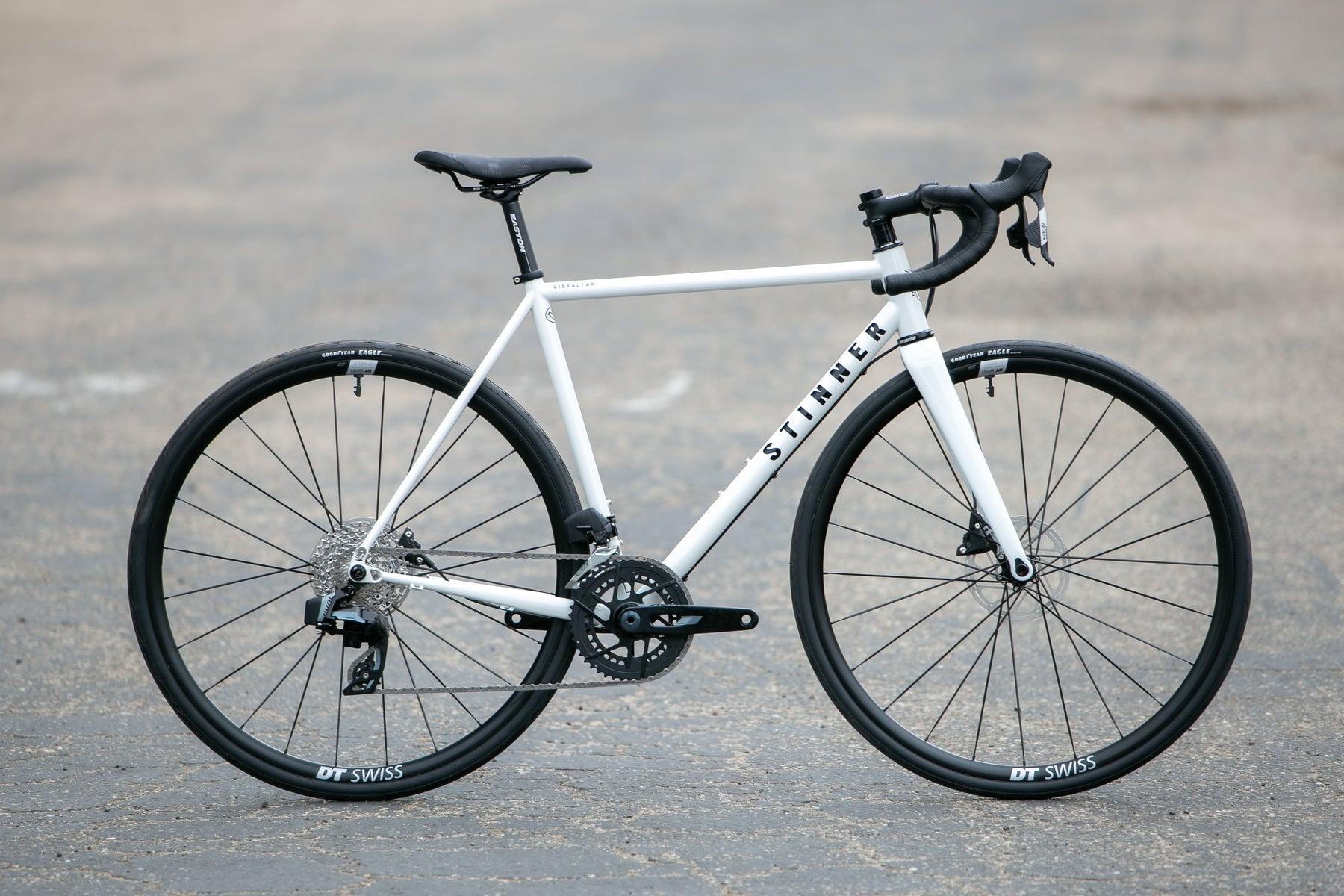

Gibraltar Select

Frameset Technical Specifications //

FRAME //

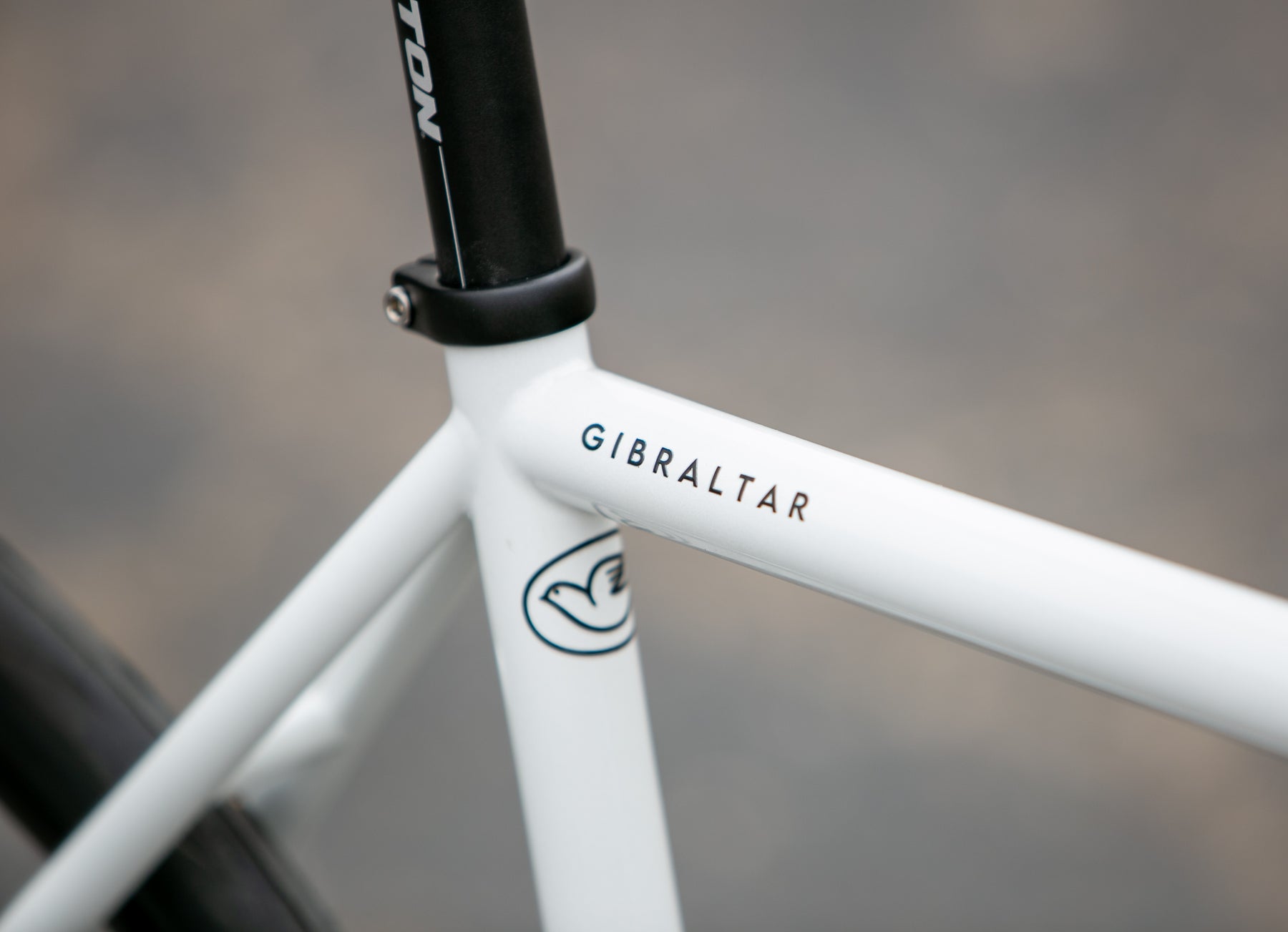

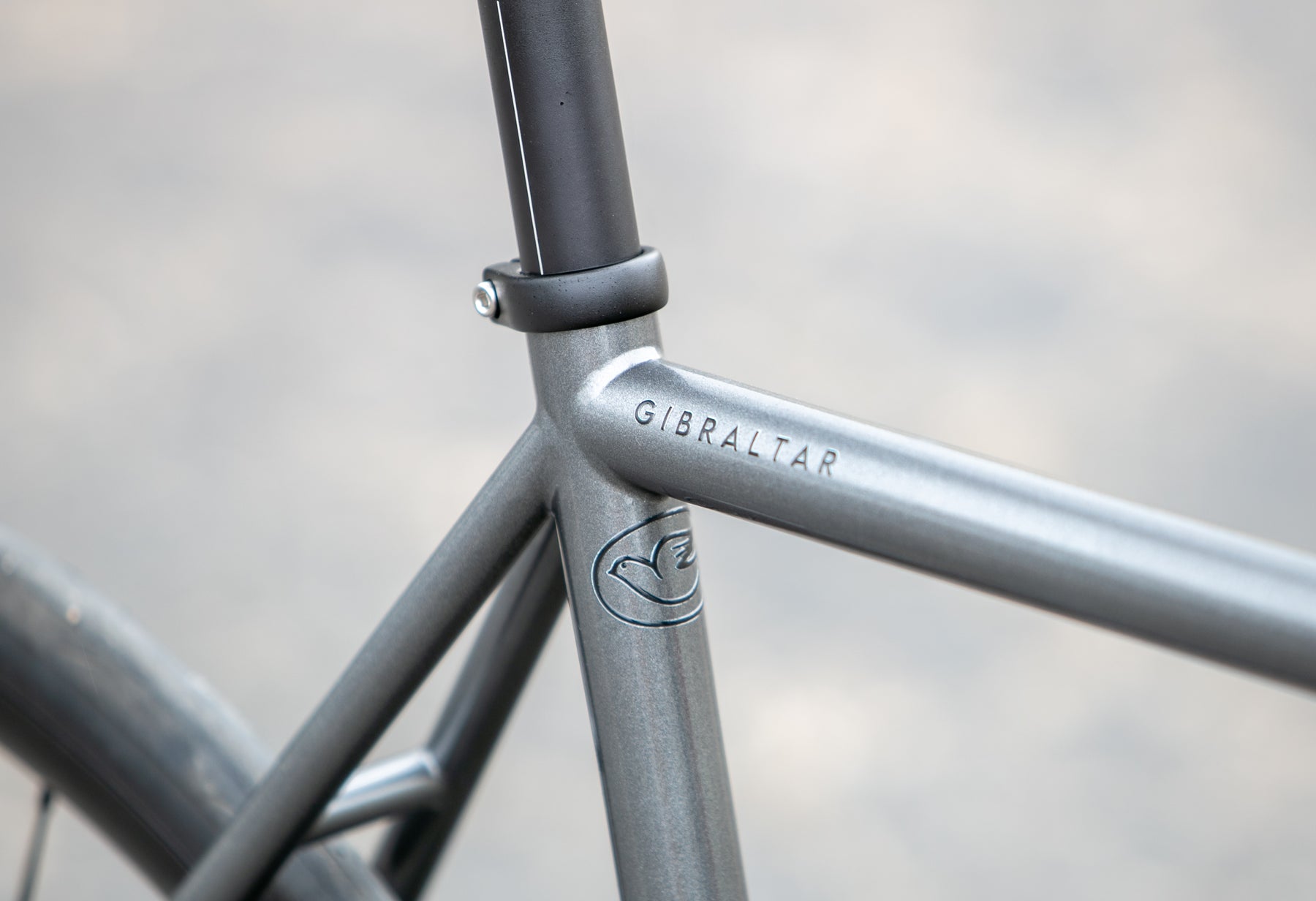

Material // Complete Columbus Zona Steel Tube Set

Finish // Durable Powder Coat

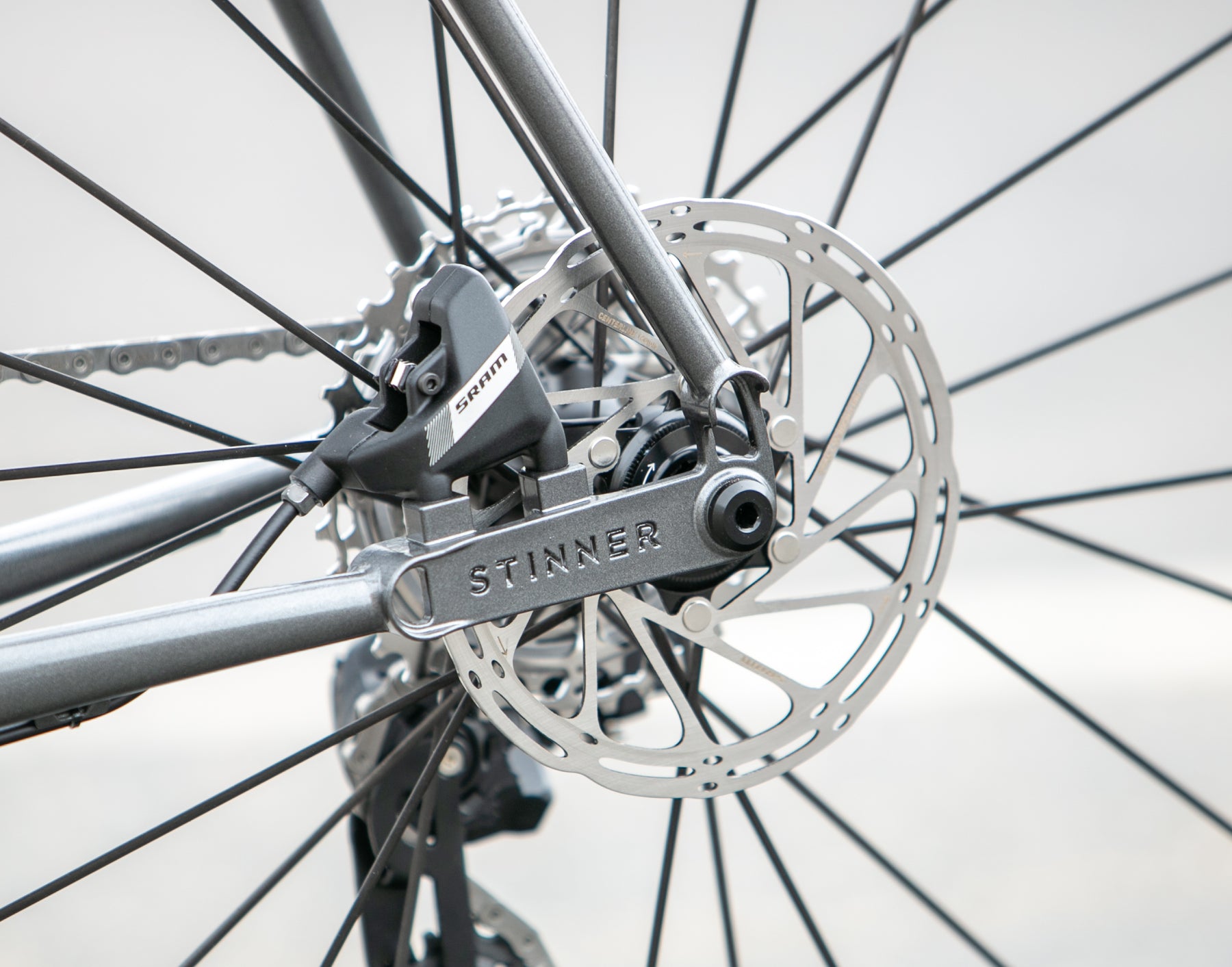

Dropouts // Stinner UDH 160mm Flat Mount Steel Dropouts

Drivetrain Compatibility // Mechanical 2x or 1x / SRAM AXS - Transmission/Full Mount compatible / Shimano 12spd Di2

MAX Tire Clearance // 700 x 32mm

MAX Chainring Clearance // 2x: 53/39t (44.5mm chainline) 1x: 54t (45mm chainline)

Dropout Spacing // 142 x 12mm

Rear Axle // 166mm - M12 x 1.0 - 15mm threaded portion

Brake Mount // Flat Mount 160mm

MAX Rotor Size // 160mm

Brake Routing // External w/bolt-on and zip-tie guides

Seatpost Diameter // 27.2mm

Seatpost Clamp Diameter // 30mm

Front Derailleur Clamp Diameter // 28.6mm

Bottom Bracket // BSA 68mm wide shell (12spd Di2 must use a 24mm spindle crankset)

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: ZS44/28.6 - Lower: EC44/40

Mounts // 2 bottle mounts in main triangle

FORK //

Material // Full Carbon

MAX Tire Clearance // 700 x 32mm

Dropout Spacing // 100 x 12mm

Front Axle // 120mm - M12 x 1.5

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // External - Internal through non-drive leg

Steerer // 1.5" Tapered

Steerer Length // 300mm

Crown Race // 40mm

Axle to Crown // 372mm

Rake // 43mm

Weight // 420g

Build Kit Details //

COCKPIT //

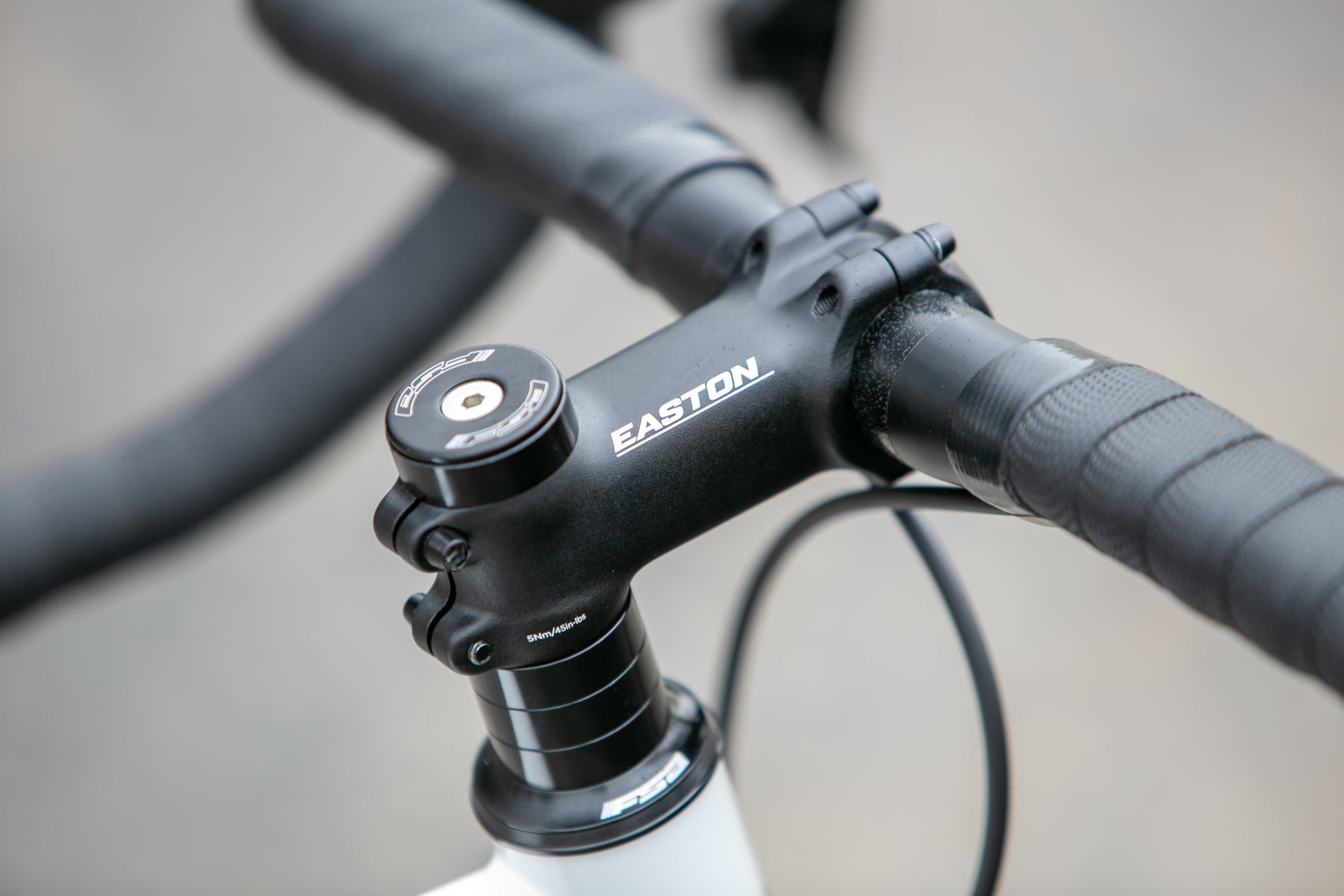

Stem // Easton EA50 Alloy - 50cm/52cm: 90mm length // 54cm/56cm: 100mm length // 58cm/60cm: 110mm length

Headset // FSA Orbit - Upper: ZS44/28.6, Lower: EC44/40

Handlebar // Easton EA50 Alloy - Reach: 80mm, Drop: 125mm - 50cm/52cm: 40cm width // 54cm/56cm: 42cm width // 58cm/60cm: 44cm width

Bar Tape // Stinner Select - Black

Seatpost // Easton EA50 Alloy - 27.2mm x 350mm length, 10mm offset

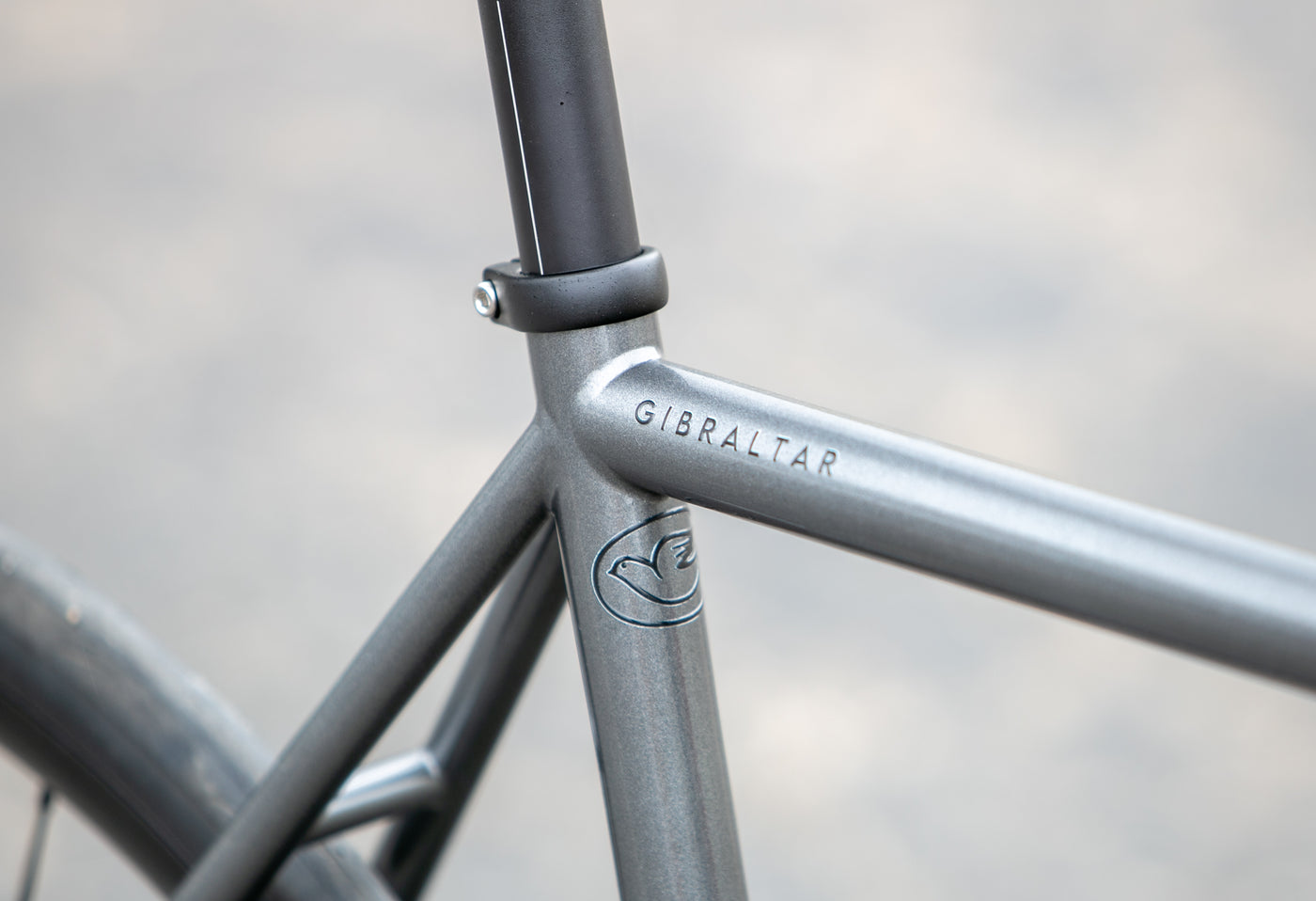

Seat Collar // Stinner Select 30mm

Saddle // WTB Silverado 265 Medium 142mm, Steel rails

Pedals // Not Included

DRIVETRAIN //

Bottom Bracket // SRAM DUB BSA 68mm

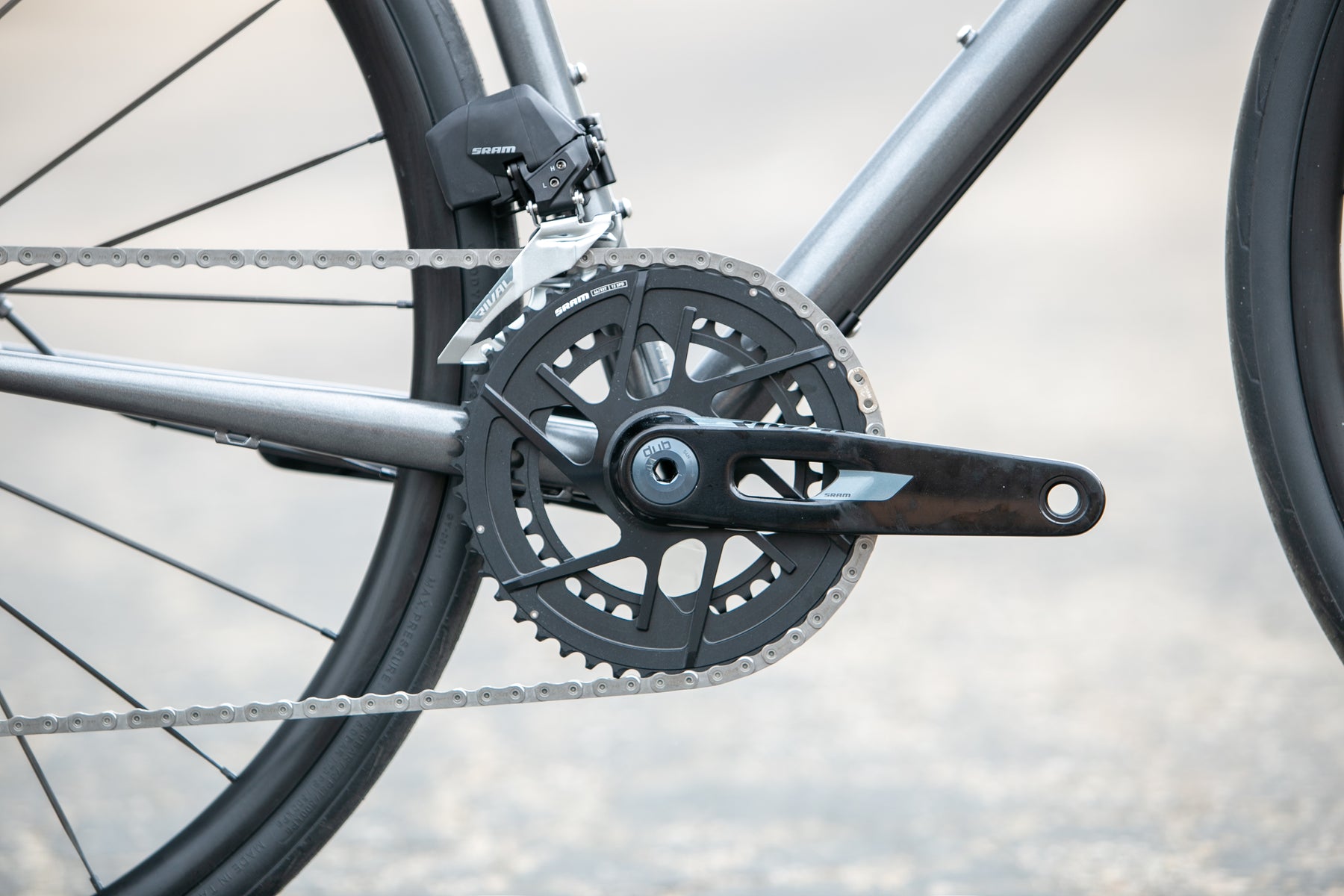

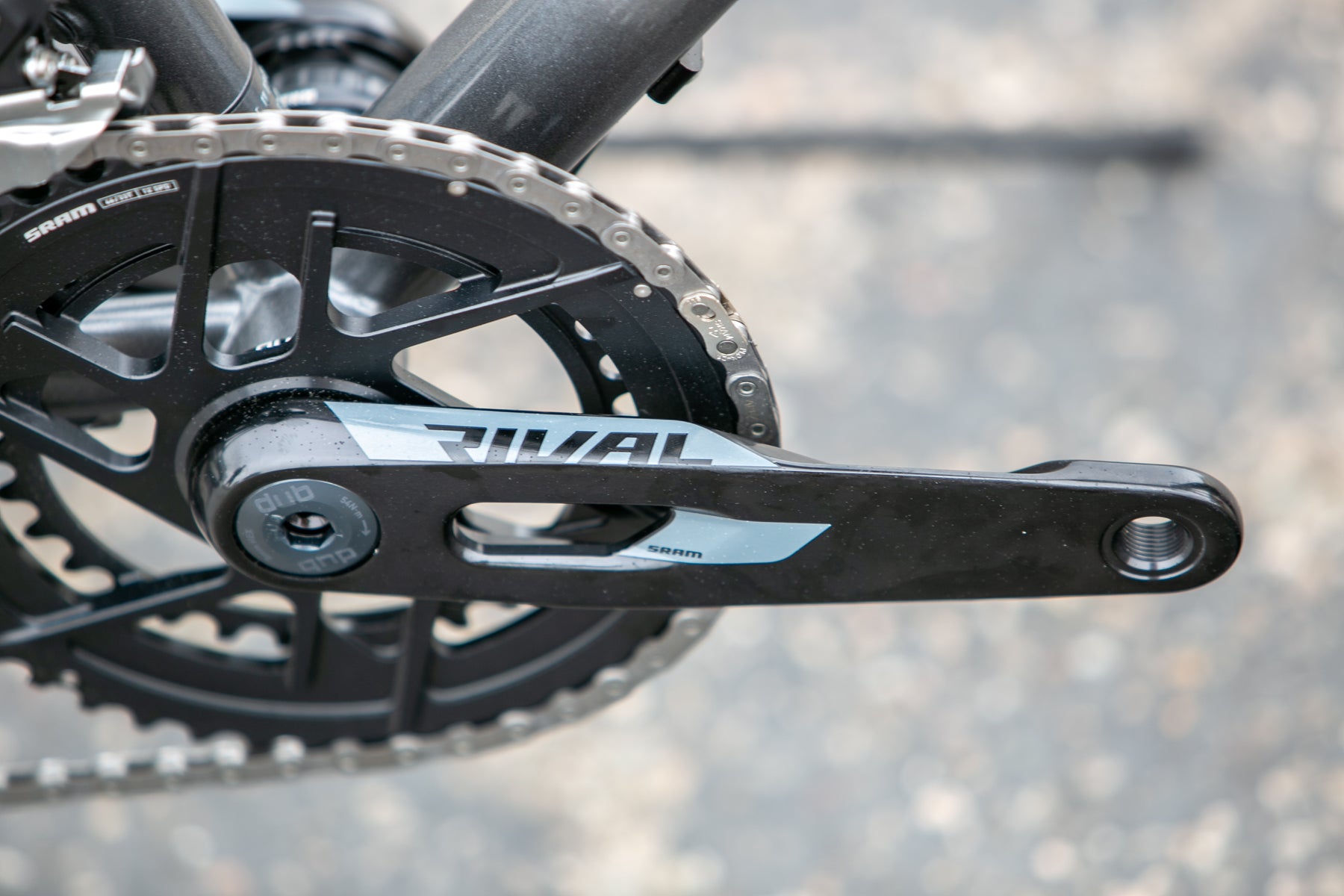

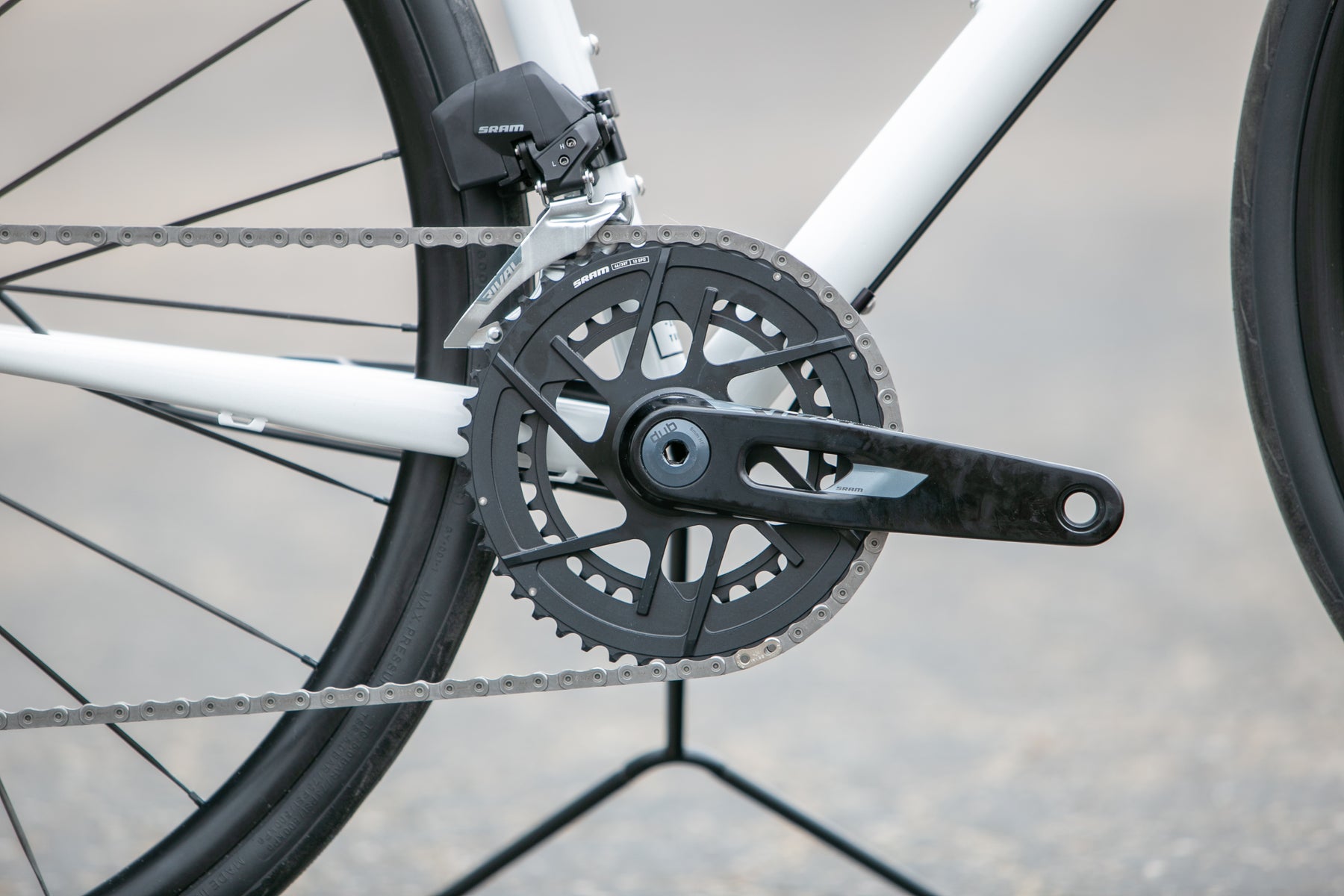

Crankset // SRAM Rival 2x - 50cm/52cm: 170mm length // 54cm/56cm: 172.5mm length // 58cm/60cm: 175mm length

Chainrings // SRAM Rival 2x - 46/33t

Chain // SRAM Apex Flat Top 12spd

Cassette // SRAM Rival 10/36t

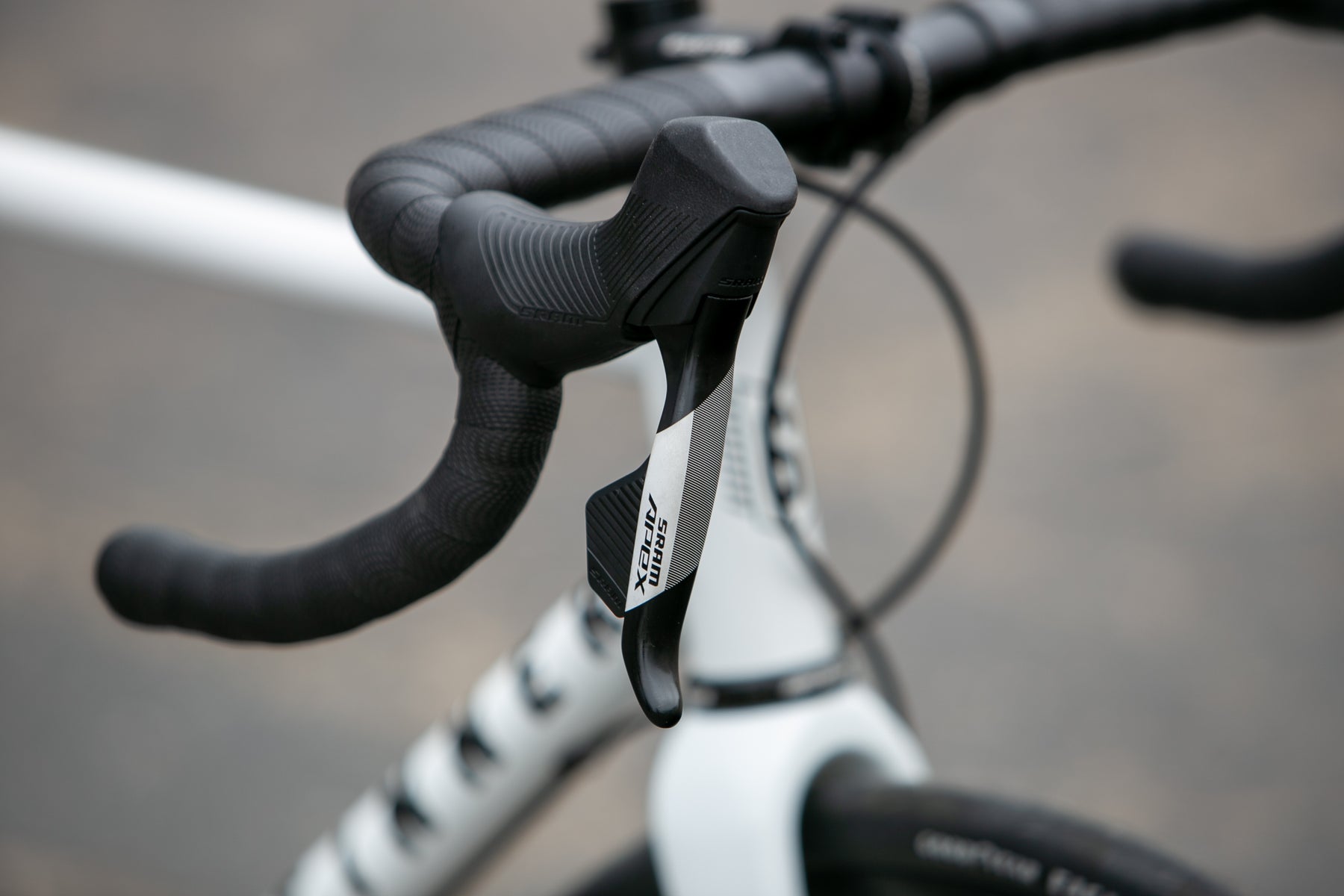

Front Shifter // SRAM Apex AXS

Rear Shifter // SRAM Apex AXS

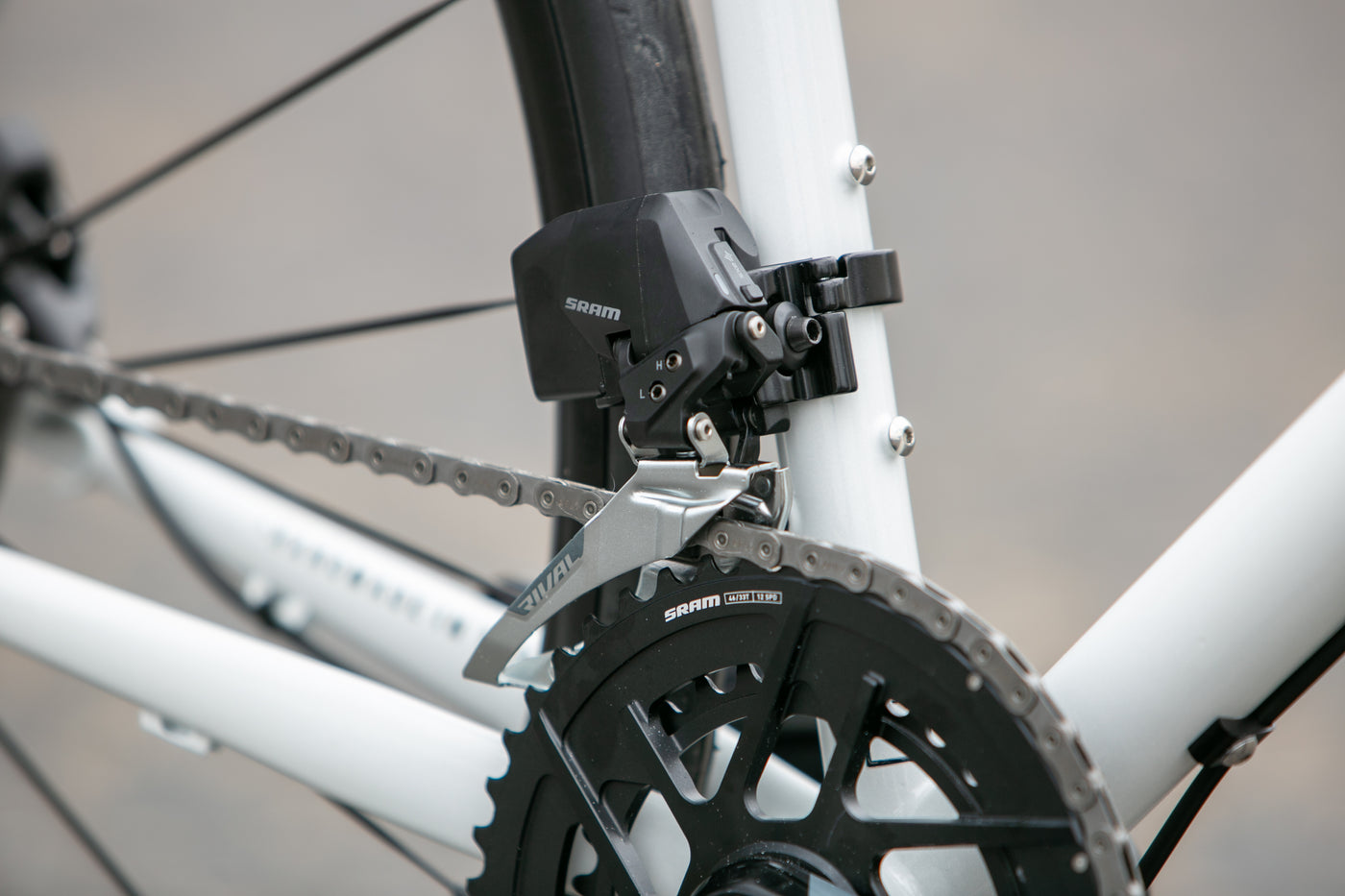

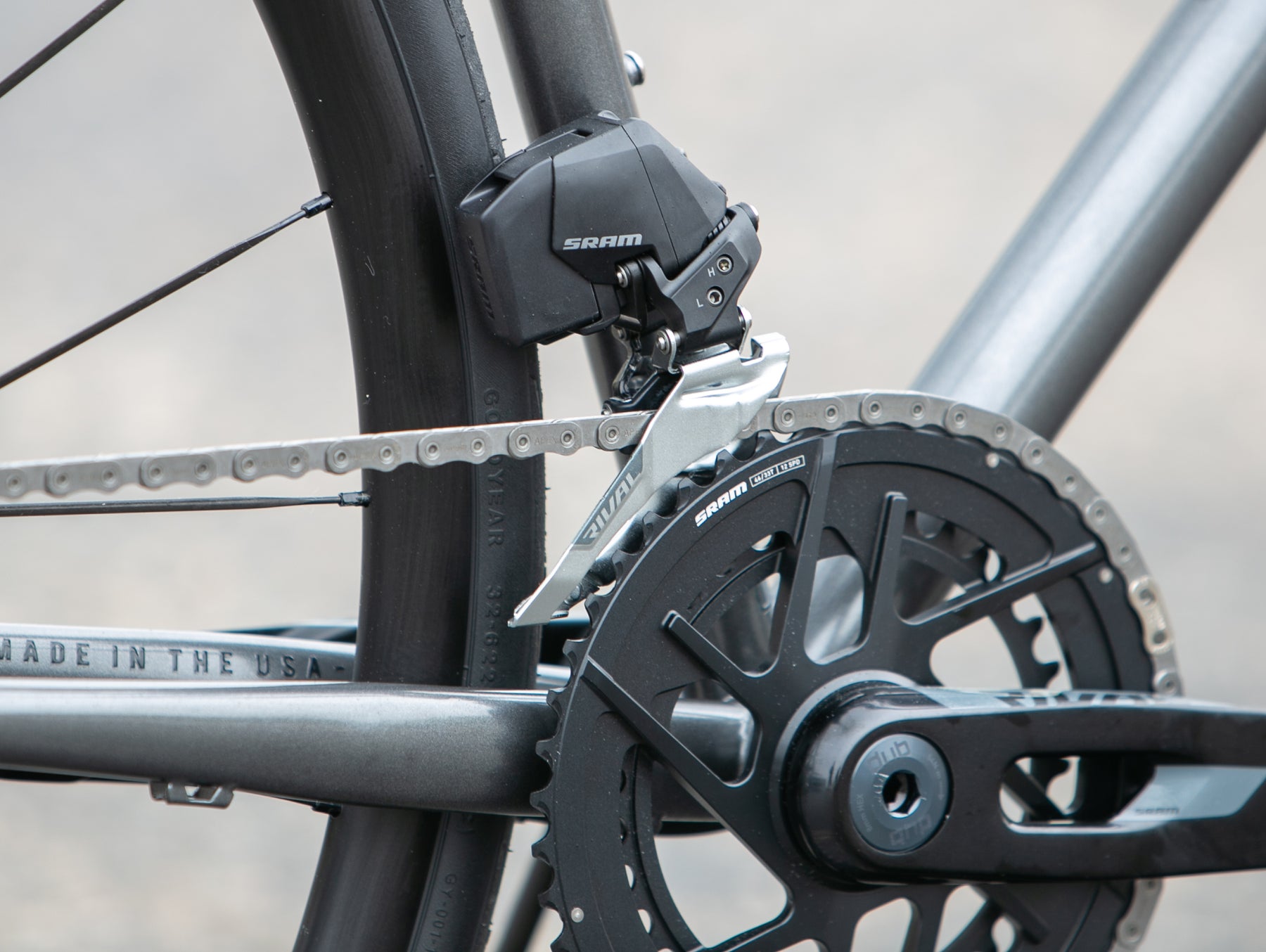

Front Derailleur // SRAM Rival AXS

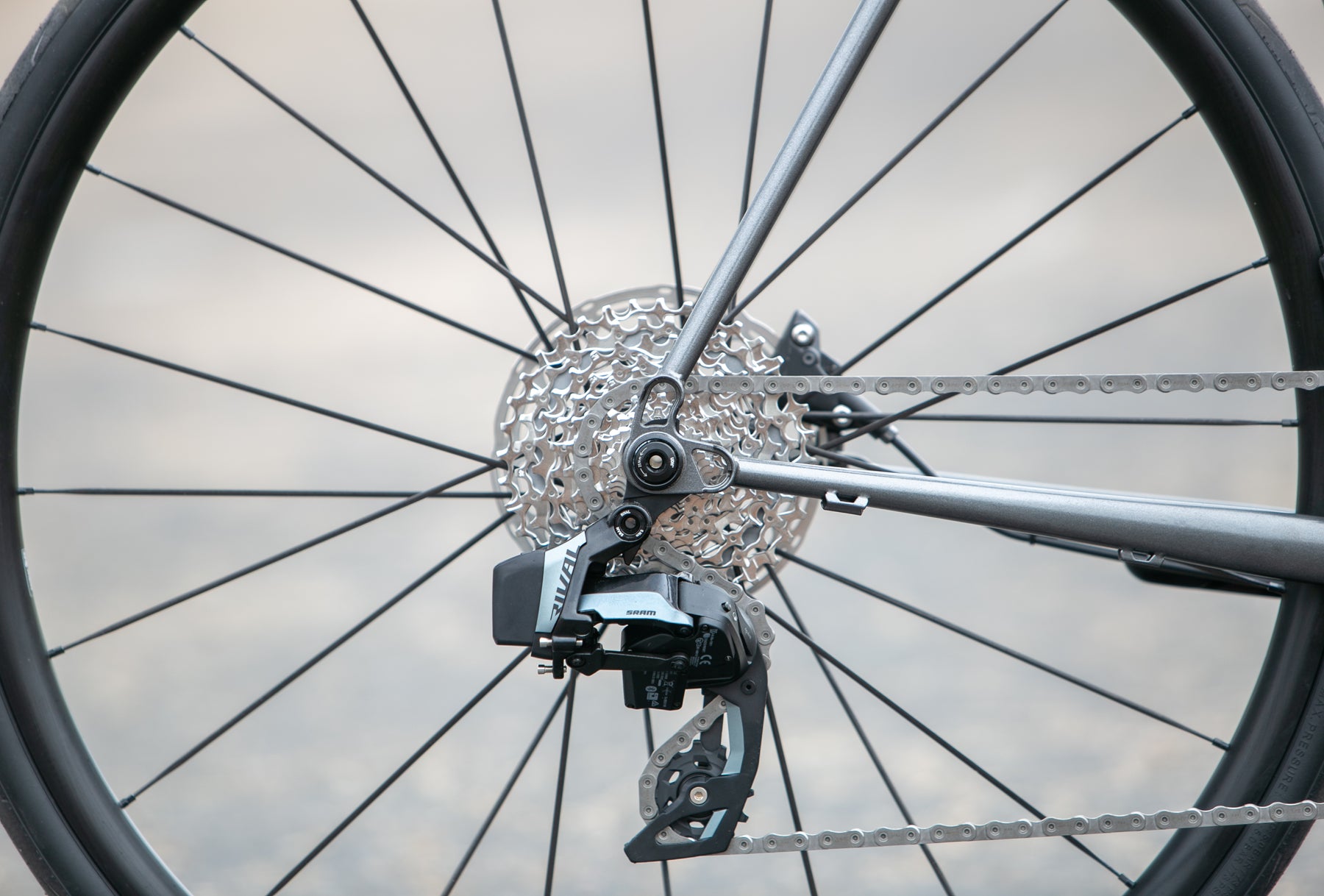

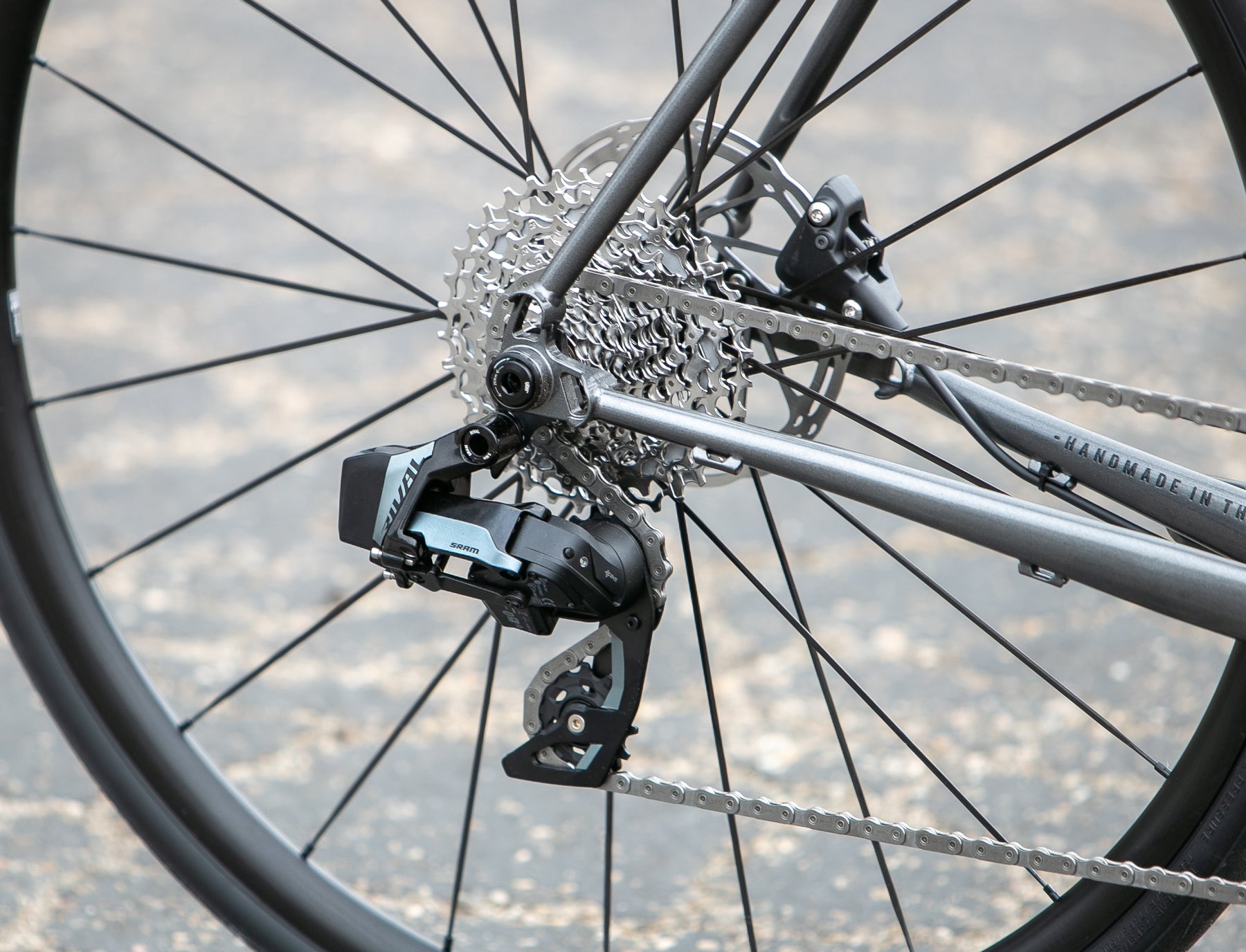

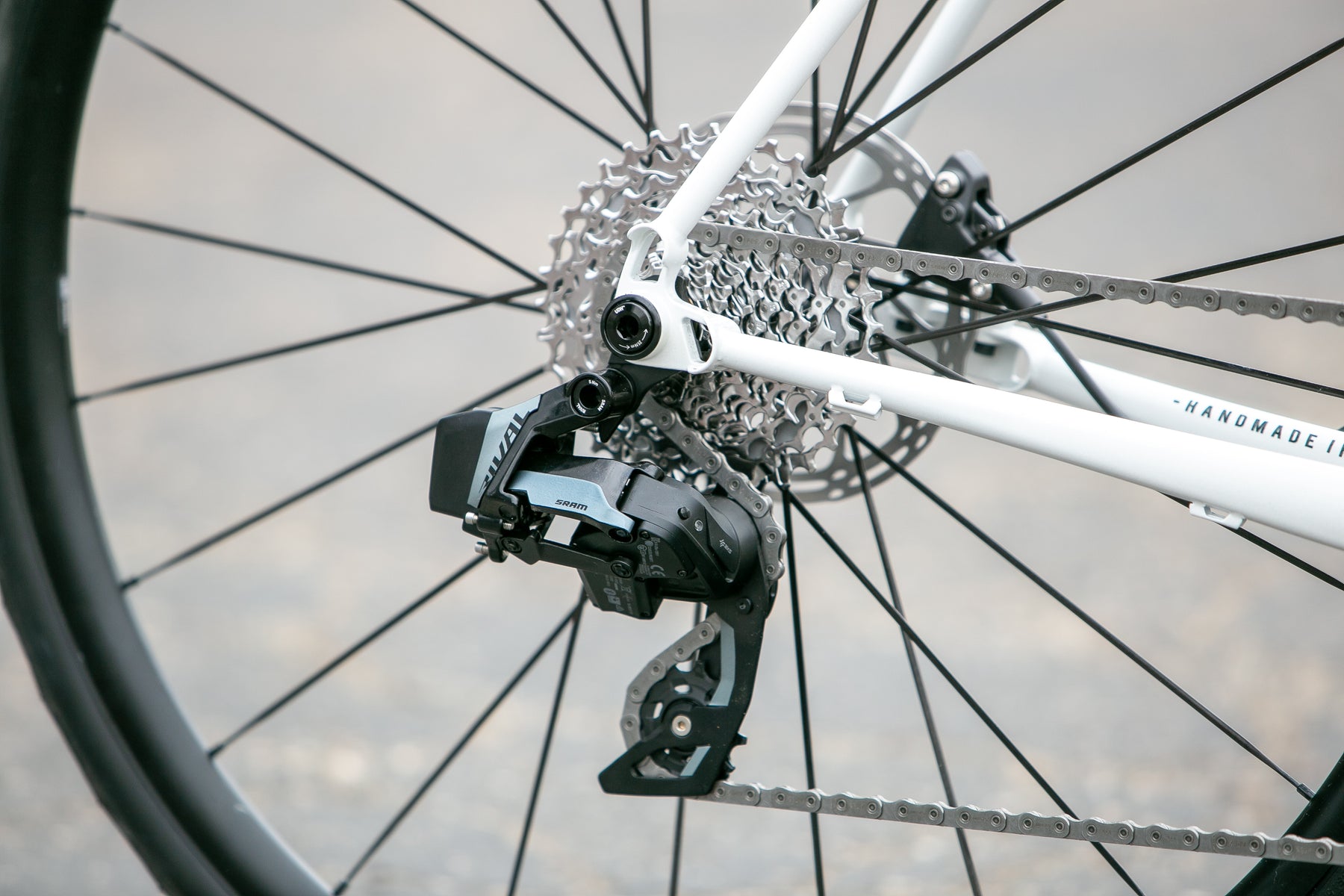

Rear Derailleur // SRAM Rival AXS

Front Brake // SRAM Apex Hydraulic

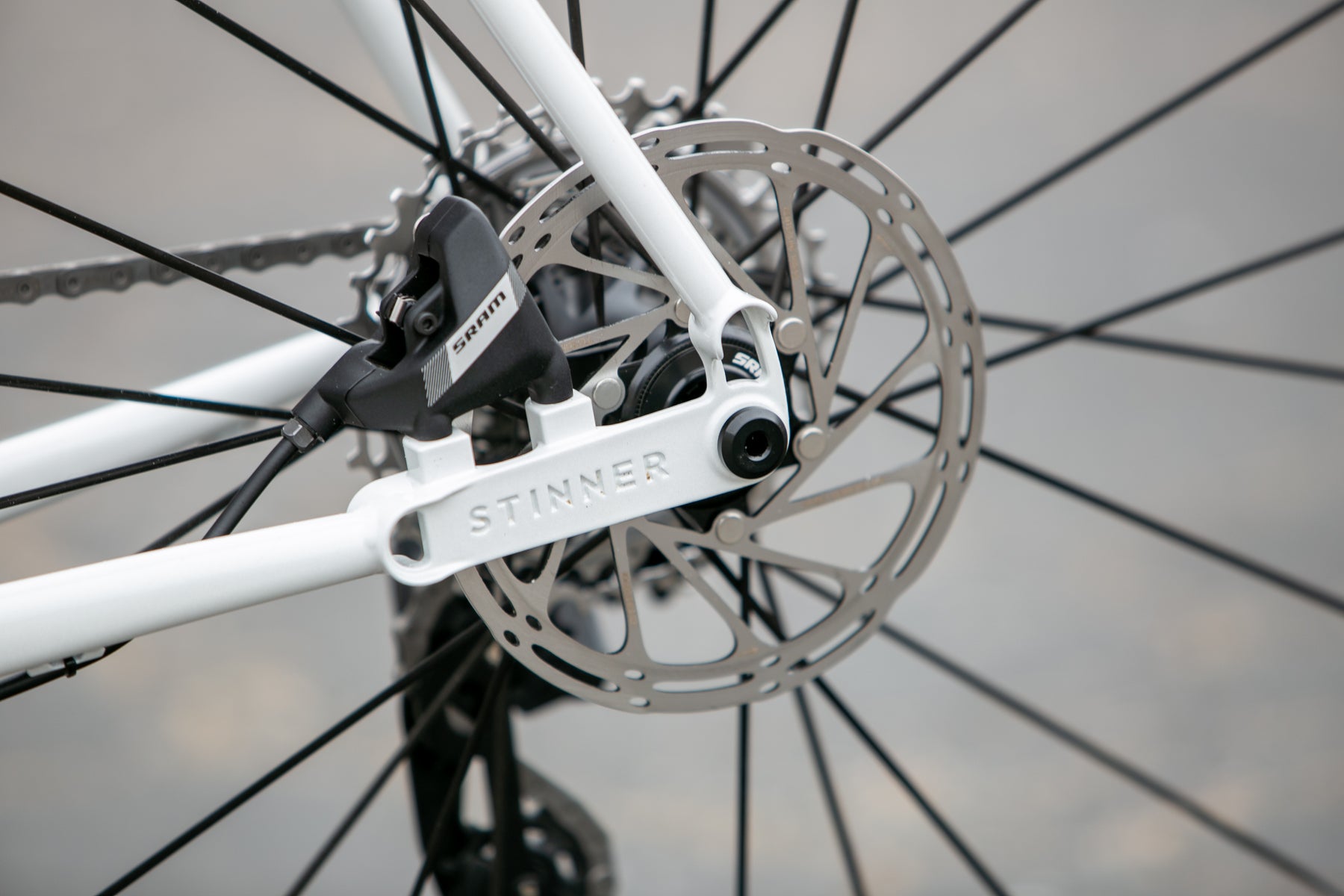

Rear Brake // SRAM Apex Hydraulic

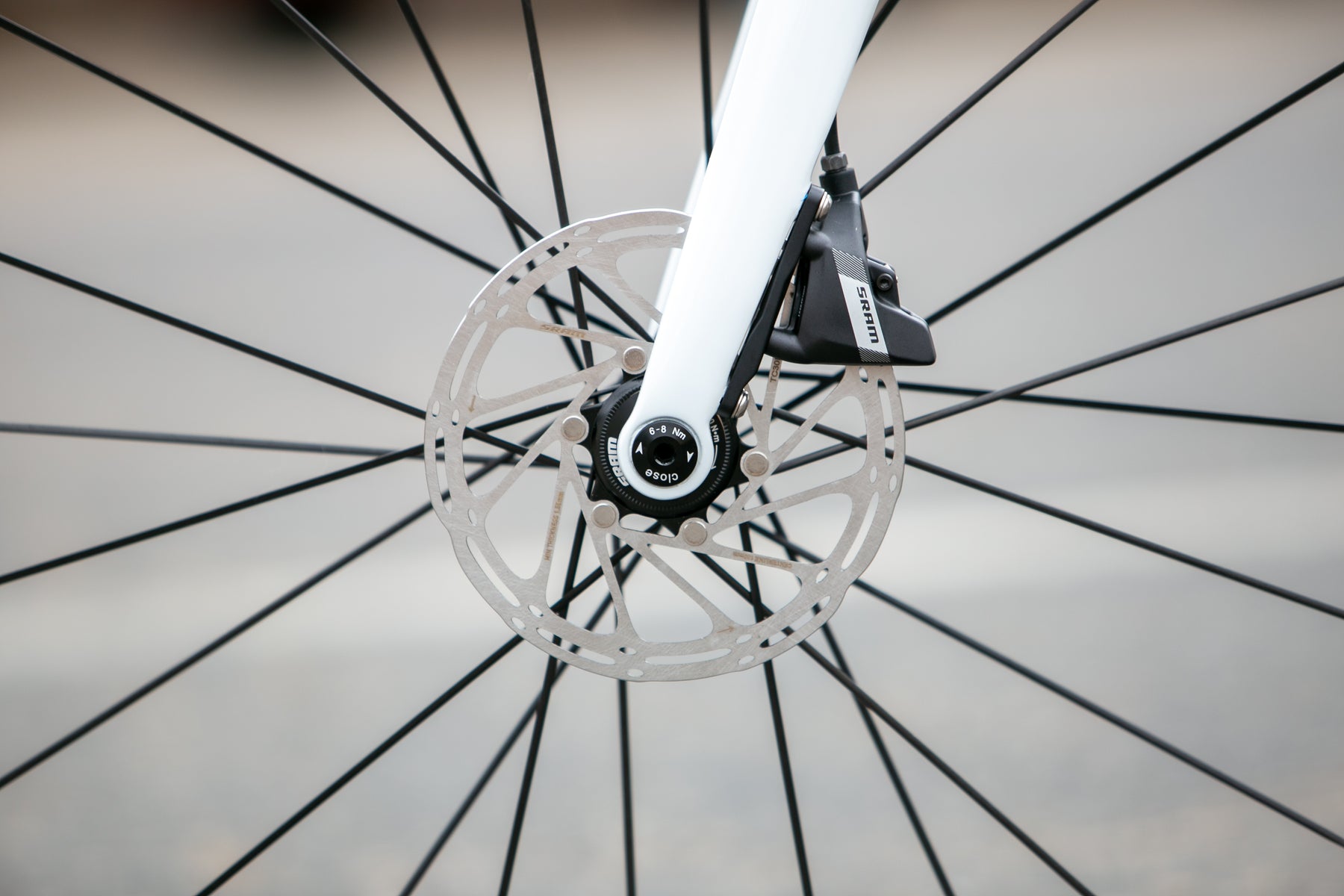

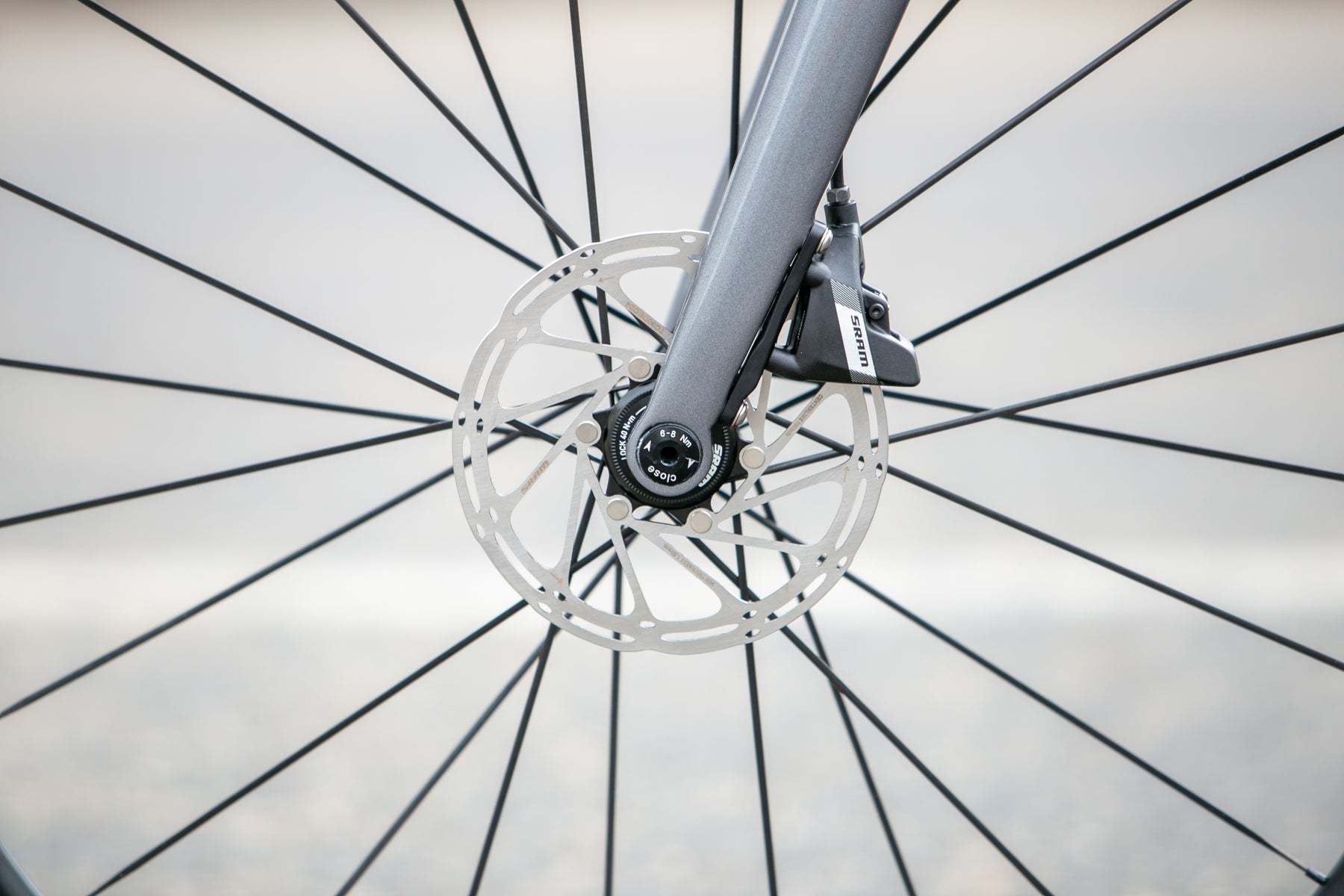

Front Rotor // SRAM Centerline CL 160mm

Rear Rotor // SRAM Centerline CL 160mm

Charger // SRAM AXS Charger

Battery // SRAM AXS Battery x2

Hanger // SRAM UDH

WHEELSET //

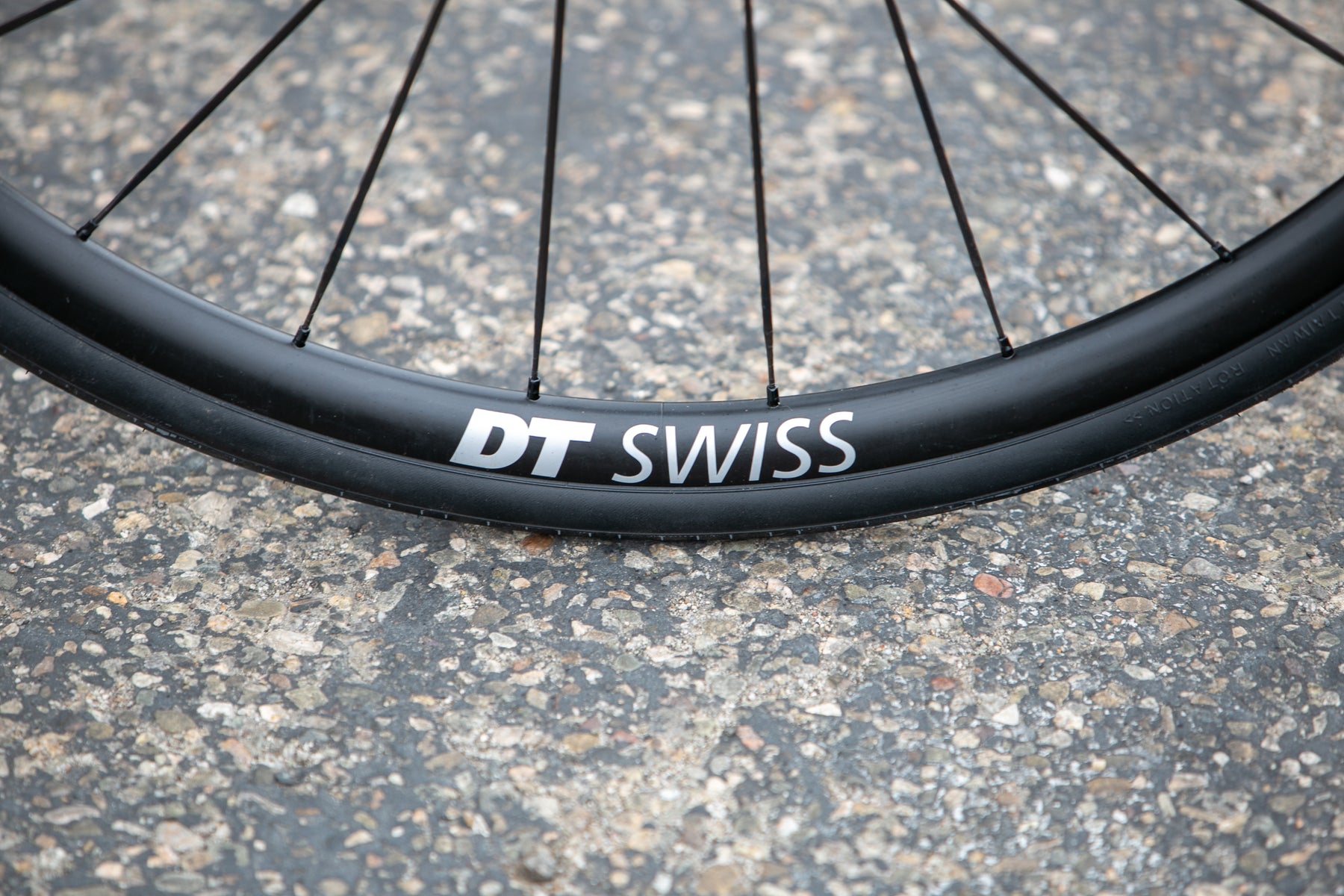

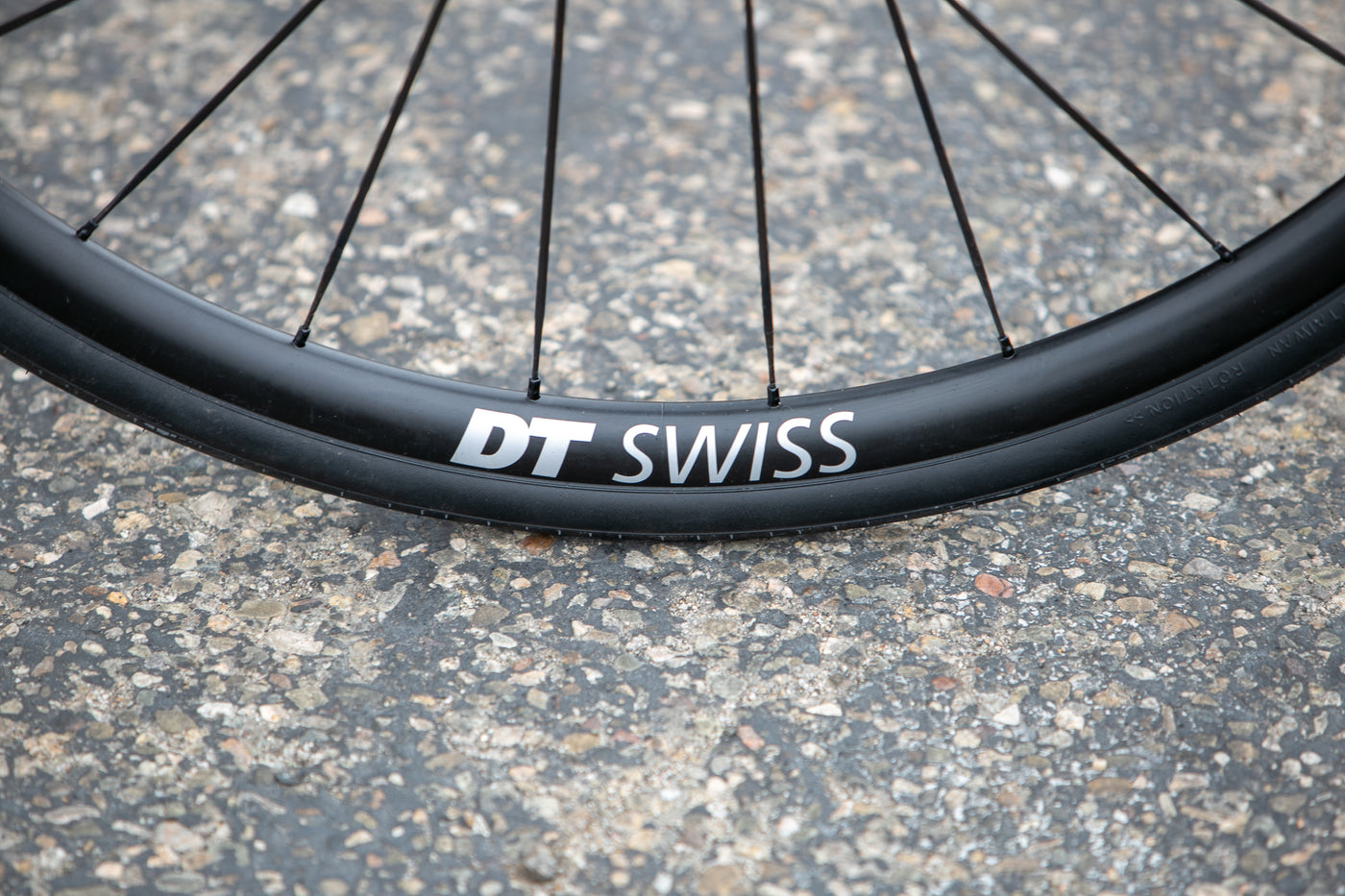

Front Wheel // DT Swiss E1800 Spline 23, Tubeless, 100x12mm, 24h, Center Lock

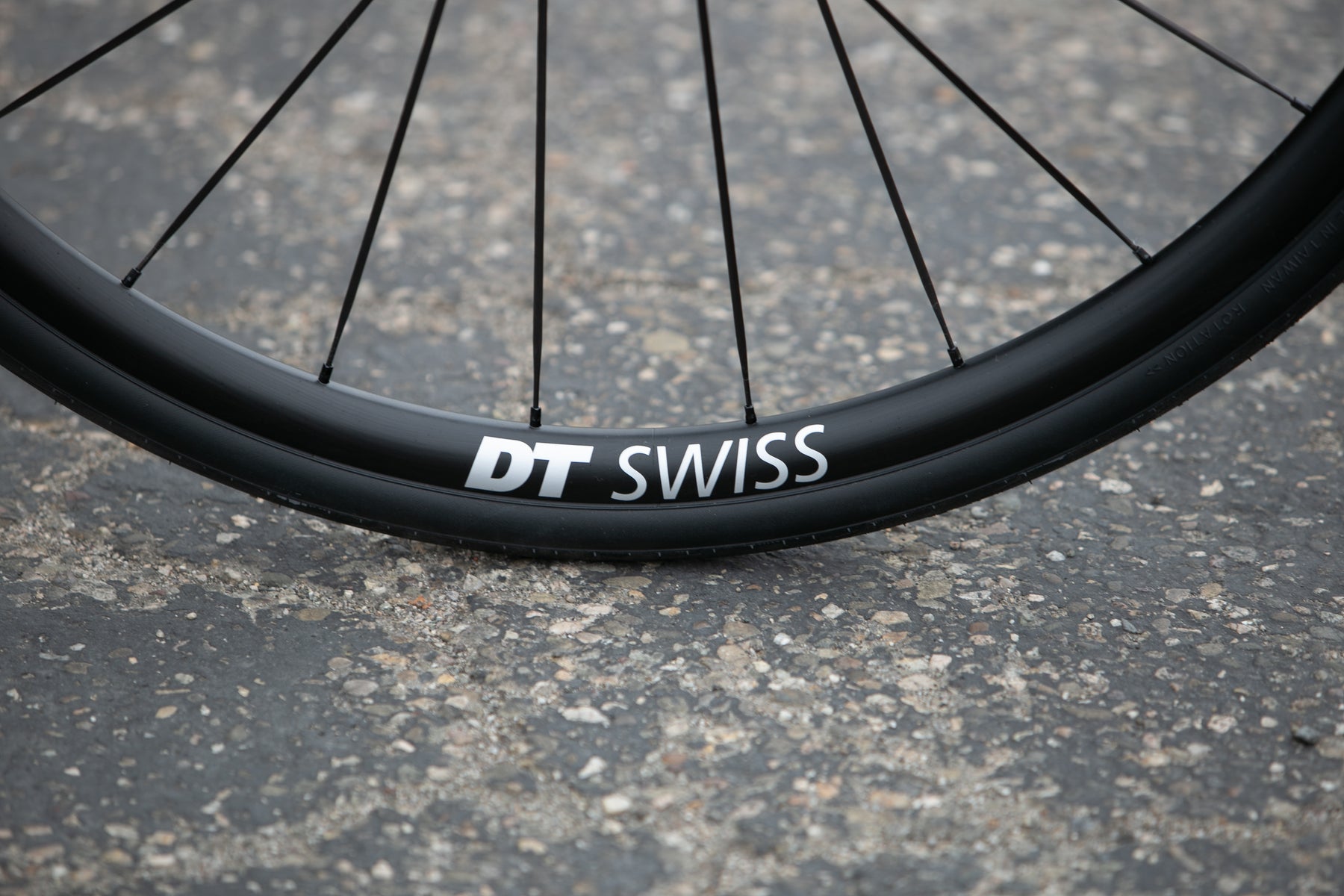

Rear Wheel // DT Swiss E1800 Spline 23, Tubeless, 142x12mm, 24h, Center Lock, XDR Driver

Front Tire // Goodyear Eagle Tubeless 32c

Rear Tire // Goodyear Eagle Tubeless 32c

GEOMETRY CHART & FRAME DRAFTS //

With a Complete //

All parts listed under the complete build kit specifications will be fully installed, tuned, and ready to ride*

*Some assembly will be required out of the box

Wheels // Will ship setup tubeless with sealant installed

Charger // SRAM AXS single battery charger

Documentation // Welcome to the Stinner Family

With a Frameset //

Fork // Gibraltar Carbon Fork

Headset // Not Included - CLICK HERE for compatible headset options.

Hanger // SRAM UDH

Rear Axle // Stinner Select UDH - 166mm x M12 x 1.0

Front Axle // Stinner Select - 120mm x M12 x 1.5

Bottle Boss Bolts // QTY. 4 Stainless Bolts

Chainstay Protector // Clear Vinyl - Installed

Flat Mount Bolts // Rear - 22mm long w/washers

Expander Plug // Stinner Select Expander Plug for Carbon Steerer

Bolt-On Guides // QTY. 4 Stinner Select Cable guides - Triple

Zip Ties // QTY. 5 Small Zip Ties - Black

Frame Plug // Di2 Rubber Plug

Seat Post Clamp // Stinner Select 30mm

Documentation // Welcome to the Stinner Family

NOTE // Frame saver will need to be applied to the inside of the frame before it is built up.
